Standard: IEC60269-6
Rated current: 25~50A
Rated voltage: 1500VDC
Size: 14x85mm
Rated breaking capacity: 30kA
Utilization category: gPV
Rated power dissipation: ≤18.8W
Operating temperature: -40°C...+80 °C
Certificates: CE, CB, TUV

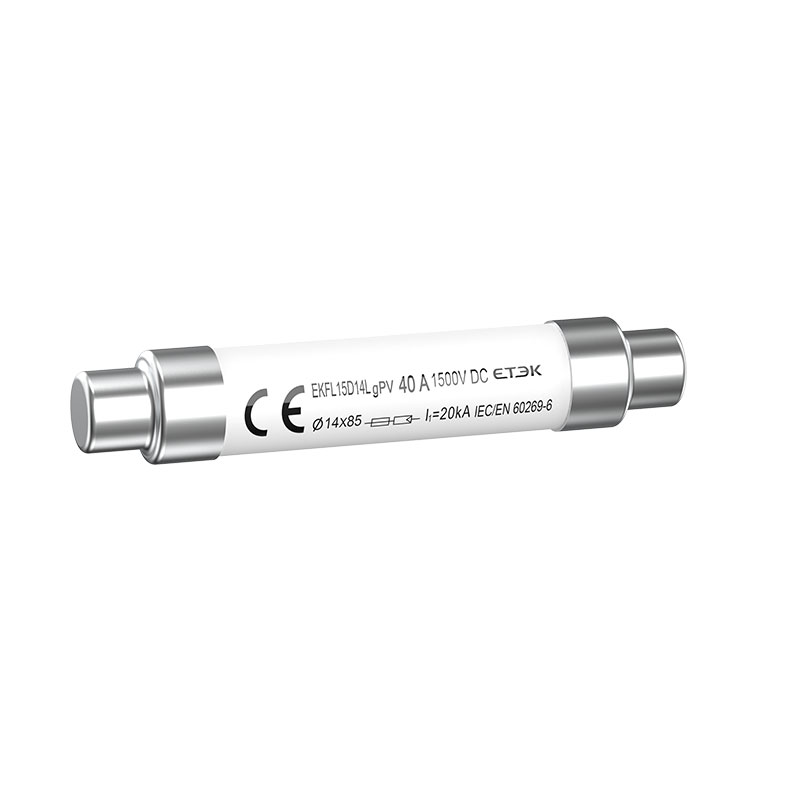

EKFL15D14L is a high-performance cylindrical fuse link specifically designed for photovoltaic (PV) system protection. Operating at a rated voltage of 1500V DC, this fuse complies with the IEC60269-6 standard and falls under the gPV utilization category, ensuring reliable protection for solar installations.
This fuse link series provides robust overcurrent protection essential for the safety and longevity of photovoltaic systems. Refer to the datasheet for detailed I²t values and power loss characteristics for each model.
Applications:
• Solar photovoltaic systems and arrays
• DC combiner boxes
• PV inverter protection
• Solar charge controllers
• High voltage DC distribution systems
• Utility-scale solar installations
|
Model |
EKFL15D14L |
|
Standard |
IEC60269-6 |
|
Rated voltage |
1500VDC |
|
Rated cureent |
25A~50A |
|
Rated breaking capacity |
30kA |
|
Utilization category |
gPV |
|
Rated power |
no more than 10.3W at 0.7In |
|
no more than 18.8W at 1In |
|
|
Size |
14mmx85mm |
|
Filling material |
Quartz Sand |
|
Arc voltage limits |
3500V |
|
Operating temperature |
-40°C ... 80°C |
|
Storage temperature |
-40°C ... 90°C |
