ETEK Solar's 600V DC combiner box is ideal for residential and small commercial solar installations. This compact yet robust solution combines multiple solar string inputs while providing essential protection features, most popular for homes.
.webp)

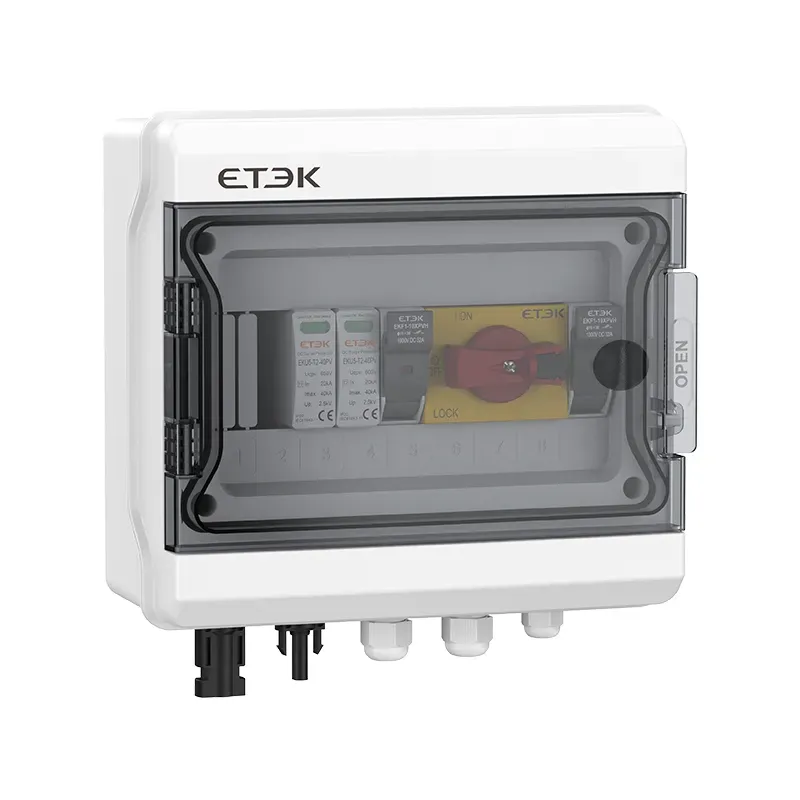

Max. DC Voltage: 600V
Input/Output Strings: 1-in / 1-out
Max. Input Current (per string): 15A (replaceable
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
.webp)

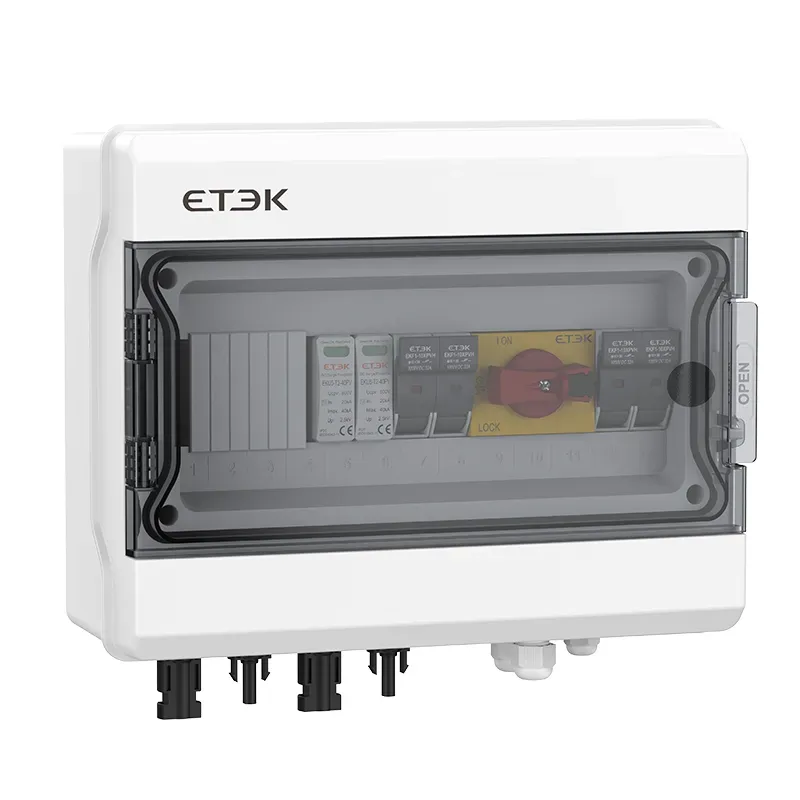

Max. DC Voltage: 600V
Input/Output Strings: 2-in / 1-out
Max. Input Current (per string): 15A (replaceable
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
.webp)

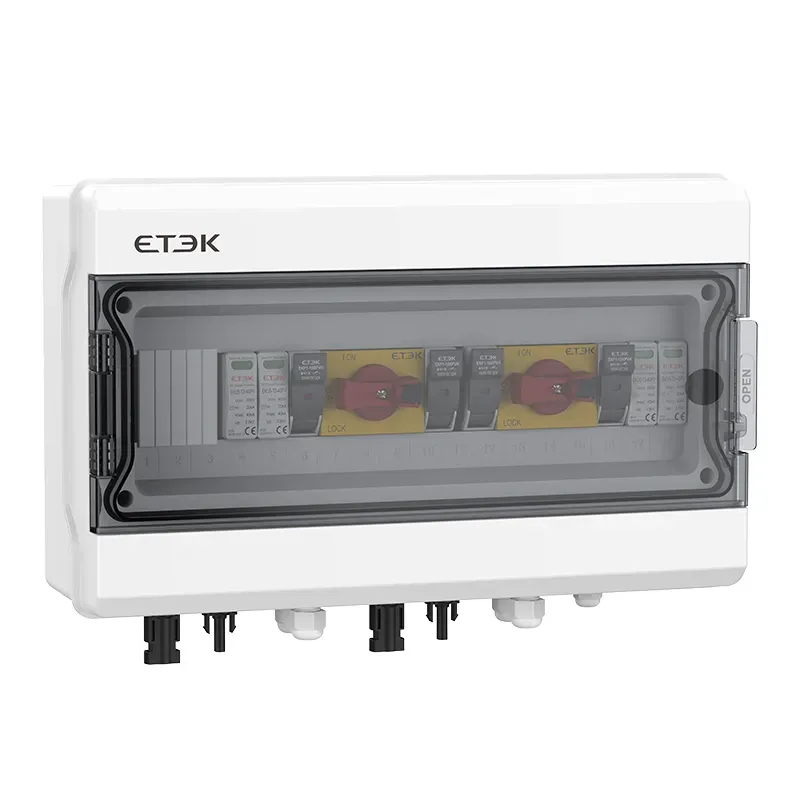

Max. DC Voltage: 600V
Input/Output Strings: 2-in / 2-out
Max. Input Current (per string): 15A
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
-1555.webp)

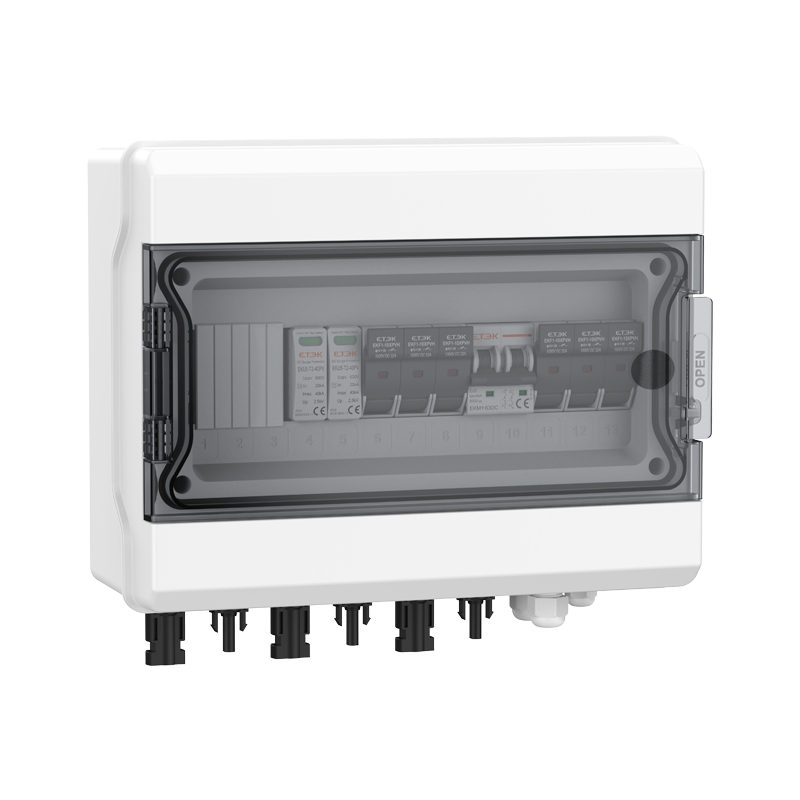

Max. DC Voltage: 600V
Input/Output Strings: 3-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 63A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCB, 2P, 600V/63A
