You're designing a solar PV system or a battery energy storage installation. The equipment will sit outdoors — exposed to rain, dust, UV radiation, and temperature swings. The breakers need to protect against overcurrents and short circuits. But they also need to survive the environment itself.

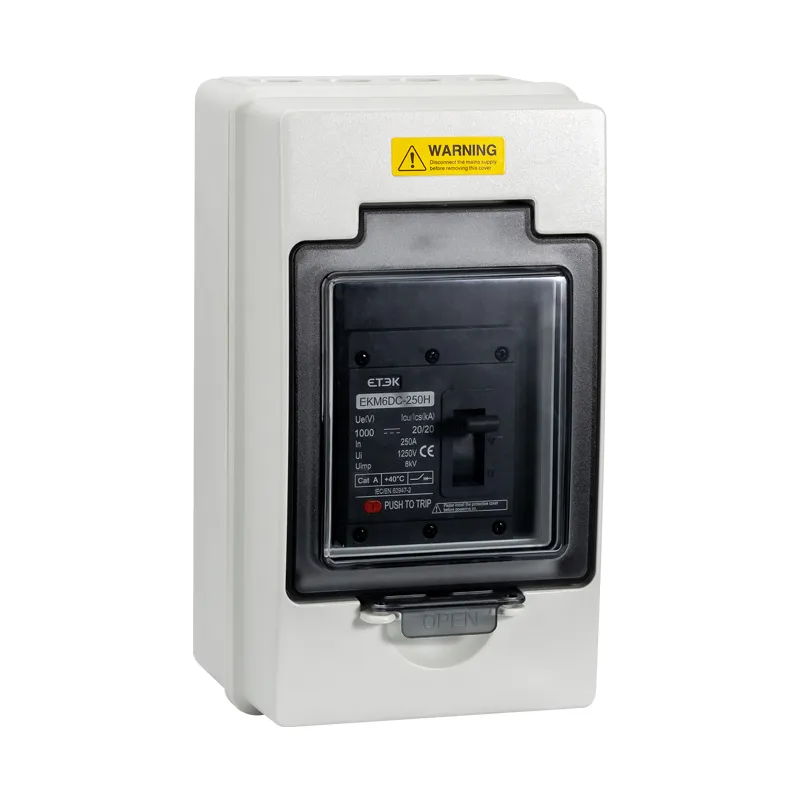

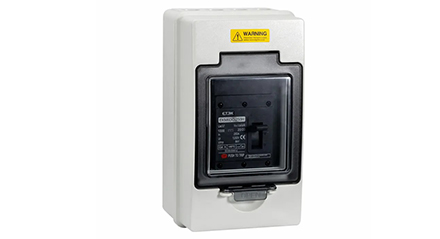

A DC molded case circuit breaker with an IP65 enclosure does both. It delivers the overcurrent and short-circuit protection that DC systems require, while the weatherproof housing keeps moisture, dust, and contaminants out. The EKM6DC-250EL is rated up to 1000V DC and 250A, with a thermal-magnetic trip unit, UV-resistant enclosure, and 12kV impulse withstand capability. This guide covers what makes an IP65-rated DC MCCB essential for outdoor applications, what key features to look for, and how to choose the right protection for your system.
Outdoor protection that goes beyond circuit breaking
A DC MCCB with IP65 enclosure does two jobs: it protects the circuit and it protects itself.
IP65 — what it actually means for your installation
IP65 means the enclosure is dust-tight (the "6") and protected against low-pressure water jets from any direction (the "5"). For a solar PV system on a rooftop or ground mount, that protection matters. Rain, sprinklers, pressure washing — none of them will compromise the breaker's internal mechanism. The UV-resistant enclosure adds another layer of durability for long-term outdoor exposure.
Thermal-magnetic tripping for DC circuits
A thermal-magnetic trip unit provides the precise protection that DC photovoltaic and battery systems demand. The thermal element protects against sustained overloads — the kind that heat up conductors over time. The magnetic element responds instantly to short circuits. With a 12kV impulse withstand rating, the breaker handles voltage transients without nuisance tripping.
1000V DC and 250A — covering medium-scale installations
A DC MCCB rated up to 1000V DC and 250A covers the typical requirements for medium-scale PV installations, solar string combiners, and battery storage systems. For applications that need higher capacity, models are available up to 800A and 1500V DC.
Where an IP65 DC MCCB fits in your system
A DC MCCB with IP65 enclosure is designed for DC circuits in solar and battery applications. Understanding where it fits helps you specify the right protection for each part of your system.
Solar string combiners
Solar string combiners consolidate multiple PV strings before feeding the inverter. A 2-pole DC MCCB protects these combiners against overcurrents and short circuits.
Battery energy storage systems
Battery banks need protection against both charging and discharging faults. A DC MCCB provides reliable overcurrent protection for battery circuits. Its -25°C to +50°C operating range covers most installation environments.
Outdoor and harsh environment applications
When equipment sits outdoors, IP65 protection isn't optional — it's essential. A UV-resistant enclosure withstands years of sun exposure. For installations in coastal or high-humidity areas, the sealed enclosure protects against corrosion.
Below is a quick reference table for key specifications:
| Specification | Value |
|---|---|
| Rated voltage | Up to 1000V DC |
| Rated current | Up to 250A |
| Poles | 2P |
| Enclosure rating | IP65 waterproof |
| Trip unit | Thermal-magnetic |
| Impulse withstand | 12kV |
| Ambient temperature | -25°C to +50°C |
| Application | Solar PV, battery storage |
The protection that keeps your system running
The right DC MCCB isn't just about interrupting faults — it's about staying operational when you need it.
Reliable overcurrent and short-circuit protection
DC circuits in solar and battery systems carry high currents that can cause significant damage if not properly protected. A thermal-magnetic trip unit provides precise protection against overloads and short circuits, ensuring that only the faulty circuit is interrupted.
UV-resistant construction for long-term outdoor use
An IP65 enclosure made with UV-resistant materials prevents degradation from sun exposure. For a solar system expected to operate for 20-25 years, that durability matters. The enclosure won't crack, yellow, or become brittle after years in the sun.
Compliance with IEC60947-2 standards
The EKM6DC-250EL is built to IEC60947-2 standards, the international benchmark for low-voltage switchgear and controlgear. For engineers and procurement teams, that certification provides assurance of quality and performance.
Questions system designers and installers ask
Q: What's the difference between a standard MCCB and a DC MCCB?
A: DC MCCBs are specifically designed for direct current circuits, with arc extinguishing systems that handle the continuous nature of DC arcs. Standard AC breakers are not rated for DC and can fail to interrupt a DC fault safely.
Q: Why do I need an IP65 enclosure for an outdoor DC MCCB?
A: IP65 protection prevents moisture and dust from entering the breaker, which can cause corrosion, tracking, and premature failure. For outdoor solar and battery installations exposed to rain, snow, and dust, IP65 is essential for long-term reliability.
Q: What current range does a typical IP65 DC MCCB cover?
A: The EKM6DC-250EL covers currents up to 250A. It's optimized for medium-scale PV installations and battery storage systems. For higher-current applications, models are available up to 800A.
How a leading supplier supports your outdoor DC protection needs
ETEK Electric's EKM6DC-250EL DC MCCB with IP65 waterproof enclosure combines the circuit protection capabilities of a molded case breaker with the environmental durability required for outdoor installations. Rated up to 1000V DC and 250A, it's designed for solar PV and battery energy storage applications.
The thermal-magnetic trip unit ensures precise overcurrent and short-circuit protection. The IP65 enclosure with UV-resistant construction protects against moisture, dust, and sun exposure. The 2-pole design is configured for DC circuits. And compliance with IEC60947-2 provides confidence in performance and safety.
For solar installers, system designers, and facility owners, the combination of robust circuit protection and weather-resistant construction makes a DC MCCB with IP65 enclosure a practical choice for outdoor DC systems. Before you specify protection for your next outdoor installation, evaluate your voltage, current, and environmental requirements — the right DC MCCB keeps your system protected, rain or shine.
Ready to specify outdoor DC protection for your solar or battery project? Contact ETEK Electric for a quote or technical consultation on the EKM6DC-250EL DC MCCB with IP65 waterproof enclosure. Share your system voltage, current requirements, and installation environment — their team can recommend the right protection for your specific application.
