Specialized for DC photovoltaic circuits up to 1000V DC. Features thermal-magnetic protection and high breaking capacity for reliable solar array protection.
• Voltage ratings up to 1000V DC • Current ratings up to 125A • Multiple pole configurations • IEC 60947-2 certified

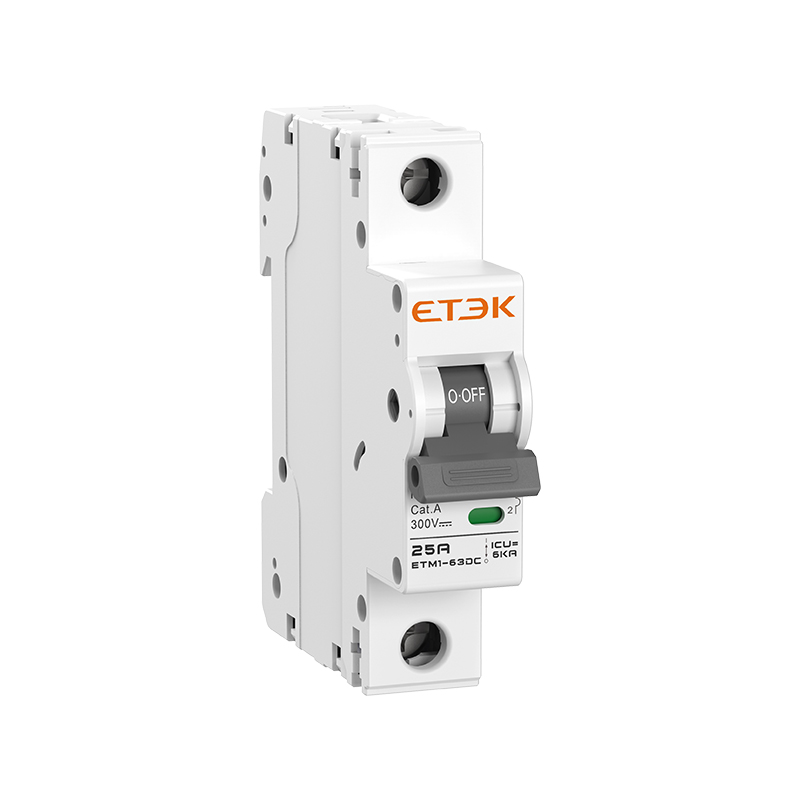

Standard: IEC60947-2
Polarity: Non-polarity
Type of trip: Thermo-magnetic
Rated current: 6~63A
Rated voltage: 1P(300VDC), 2P(600VDC), 3P(900VDC), 4P(1200VDC)
Number of poles: 1P,2P,3P,4P
Rated short-circuit breaking capacity: 6kA
Tripping curve: B(4In±20%), C(8In±20%), K(10In±20%)
Connection: According to the wiring diagram
Standard: IEC60947-2
Polarity: Non-polarity
Type of trip: Thermo-magnetic
Rated current: 80A, 100A,125A
Rated voltage: 1P(300VDC), 2P(600VDC), 3P(900VDC), 4P(1200VDC)
Number of poles: 1P,2P,3P,4P
Rated short-circuit breaking capacity: 6kA
Tripping curve: B(4In±20%), C(8In±20%), K(10In±20%)
Connection: According to the wiring diagram
Standard: IEC60947-2
Type of trip: Thermo-magnetic
Rated current: 80~125A
Rated voltage: 1P(250VDC), 2P(500VDC), 4P(1000VDC)
Number of poles: 1P,2P,4P
Rated short-circuit breaking capacity: 6kA
Connection: According to the wiring diagram
Standard: IEC60947-2
Type of trip: Thermo-magnetic
Rated current: 6~63A
Rated voltage: 1P(250VDC), 2P(500VDC), 4P(1000VDC)
Number of poles: 1P,2P,4P
Rated short-circuit breaking capacity: 6kA
Connection: According to the wiring diagram
