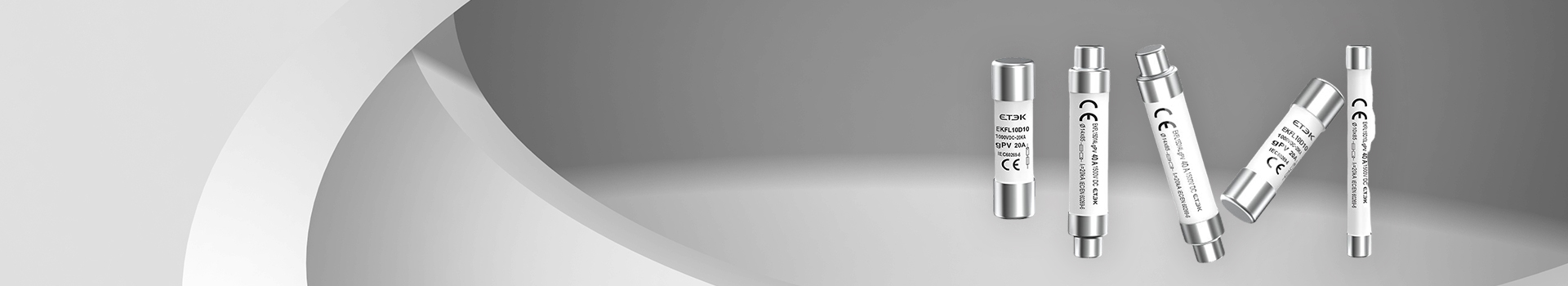

Fuse Links play a crucial role in safeguarding photovoltaic systems against overcurrent and short circuit conditions. Offering exceptional protection for solar panels, combiner boxes, and battery storage, ETEK Solar's cylindrical Fuse Links are:
• Rated Voltage: 1000VDC and 1500VDC
• Current Ratings: 2A–50A
• Utilization Category: gPV standard compliance for PV systems
• Breaking Capacity: Up to 50kA for ultimate fault handling
Our cylindrical Fuse Links models include options for core sizes:
10×38mm: Compact, with currents from 2A to 32A.
10×85mm and 14×85mm: Larger sizes for higher capacity needs.
Product Series: EKPV-NH
Fuse Class: gPV (Photovoltaic Protection)
Rated Voltage (Un): 1000V DC / 1500V DC
Rated Current (In): 32A – 400A
Rated Breaking Capacity: 50kA
Operating Temperature: -40°C to +75°C
Max Altitude: 2000m
Standard: IEC60269-6
Rated current: 25~50A
Rated voltage: 1500VDC
Size: 14x85mm
Rated breaking capacity: 30kA
Utilization category: gPV
Rated power dissipation: ≤18.8W
Operating temperature: -40°C...+80 °C
Certificates: CE, CB, TUV
Standard: IEC60269-6
Rated current: 8~35A
Rated voltage: 1500VDC
Size: 10x85mm
Rated breaking capacity: 50kA
Utilization category: gPV
Rated power dissipation: ≤9.3W
Operating temperature: -40°C...+80°C
Certificates: CE, CB, TUV
Standard: IEC60269-6
Rated current: 8~32A
Rated voltage: 1000VDC
Size: 10x38mm
Rated breaking capacity: 30kA
Utilization category: gPV
Rated power dissipation: ≤4.3W
Operating temperature: -40°C...+80 °C
Certificates: CE, CB, TUV
