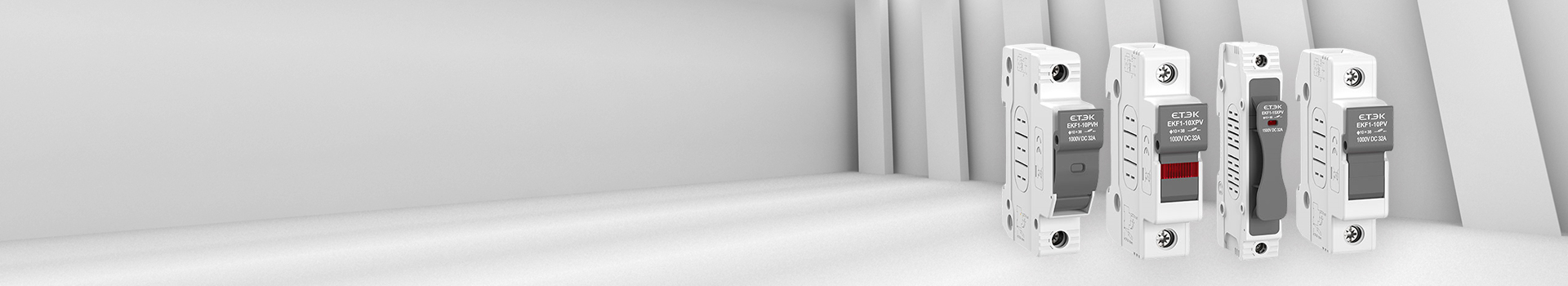

A fuse disconnector is a switch device integrated with a fuse to provide reliable disconnection and overcurrent protection in solar DC systems. At ETEK Solar, our Fuse Disconnectors are:
• Rated Voltage: Options available for 1000VDC and 1500VDC
• Current Range: Up to 50A
• Design Compliance: IEC 60947-3 standard
• Application: Mountable on DIN rails for secure installation in combiner boxes, battery storage, and solar panels
ETEK’s Fuse Disconnectors ensure seamless integration into your solar energy setup while maintaining safety standards.
Standard: IEC60947-3
Rated current: 35A
Rated voltage: 1500VDC
Number of poles: 1P
Conditional Short-circuit Current: 50kA
Utilization Category: DC-PV0
Ambient air temperature: -5...+40 ºC
Standard: IEC60947-3
Rated current: 32A
Rated voltage: 1000VDC
Number of poles: 1P
Conditional Short-circuit Current: 30kA
Utilization Category: DC-PV0
Ambient air temperature: -5...+40 ºC
Standard: IEC60947-3
Rated current: 32A
Rated voltage: 1000VDC
Number of poles: 1P
Conditional Short-circuit Current: 30kA
Utilization Category: DC-PV0
Ambient air temperature: -5...+40 ºC
