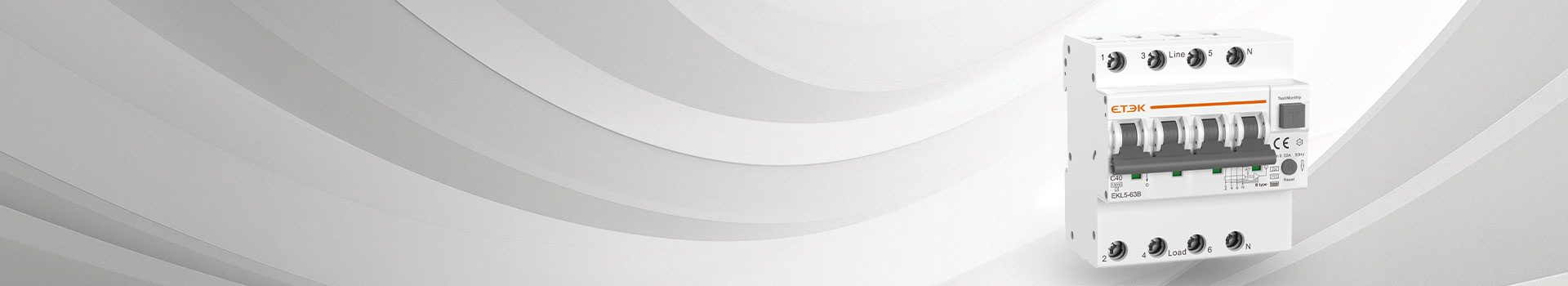

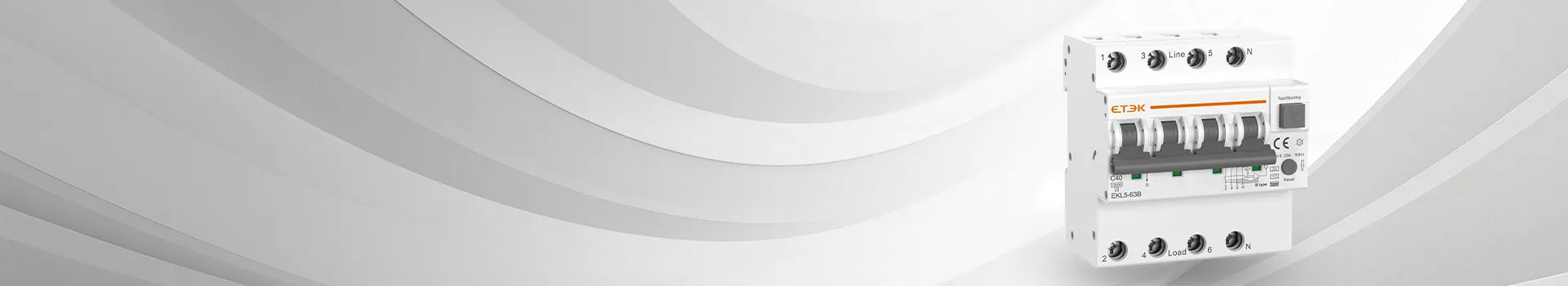

RCBO (Residual Current Circuit Breaker with Overcurrent protection) integrate the functions of an RCCB and an MCB, providing protection against earth leakage and overcurrent (overload and short-circuit) in a single device. ETEK Solar’s Type B RCBOs offer comprehensive protection for photovoltaic systems, EV chargers, and other demanding applications, with full sensitivity to AC, pulsating DC, and smooth DC residual currents.
Standard: IEC 61009-1,IEC 62423
Type: B
Residual current trip unit type: Electronic
Rated current: 6~63A
Rated voltage: 230/400V~240/415V
Poles: 2P(1P+N), 4P(3P+N), N Pole on right
Tripping curve: B, C,D
Rated sensitivity: 30mA, 100mA, 300mA
Rated short-circuit breaking capacity: 10kA
Ambient air temperature: -25...+55ºC
Connection: From top
Standard: IEC 61009-1,IEC 62423
Type: B
Residual current trip unit type: Electronic
Rated current: 6~40A
Rated voltage: 230/240V
Poles: 1P+N, N Pole on left
Tripping curve: B, C
Rated sensitivity: 30mA
Rated short-circuit breaking capacity: 6kA
Ambient air temperature: -25...+55ºC
Connection: Bi-directional
Standard: IEC 61009-1,IEC 62423
Type: B
Residual current trip unit type: Electronic
Rated current: 6~63A
Rated voltage: 230/240V
Poles: 1P+N, N Pole on right
Tripping curve: B, C
Rated sensitivity: 30mA
Rated short-circuit breaking capacity: 10kA
Ambient air temperature: -25...+55ºC
Connection: Bi-directional
