Solar inverters are essential devices that transform solar energy into usable power for homes and businesses. ETEK offers two main types: Power Inverters and Hybrid Inverters, each designed to maximize renewable energy efficiency and convenience.

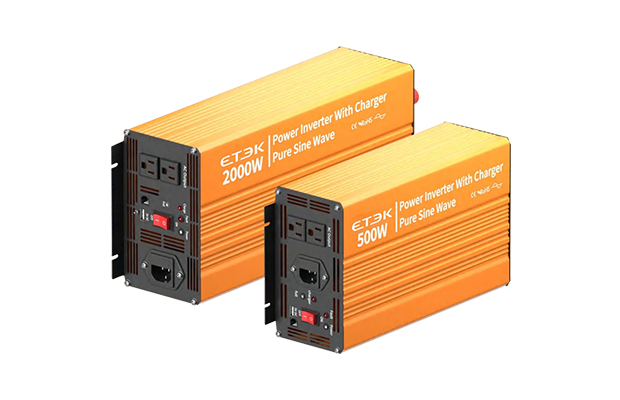

Power Inverters efficiently convert solar DC power to AC power, enabling direct use in household appliances. These inverters feature pure sine wave output, ensuring reliable performance and compatibility with sensitive electronics.

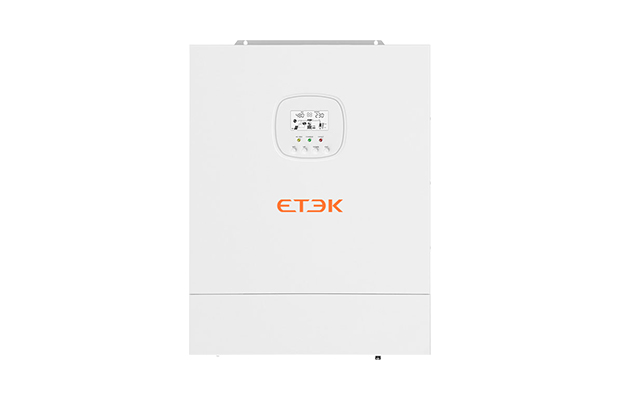

Hybrid inverter is an all-in-one solar power solution that combines solar inverter and battery management functions. It not only converts the direct current (DC) electricity generated by solar panels into alternating current (AC) for home or business use but also manages the charging and discharging of battery storage systems. This allows for efficient energy management by storing excess solar energy for use during nighttime or power outages, maximizing the utilization of renewable energy sources. Hybrid inverters are essential components in modern solar power systems, enabling greater energy independence and reliability.
Both inverter types support sustainable living by reducing electricity costs and environmental impact. With ETEK's advanced technology, users can monitor their energy production and consumption in real-time, maximizing the benefits of their solar power systems while contributing to a greener future.
Rated output power: 1kW to 11kW model
Rated output voltage: 220/230/240V
Rated battery voltage: 12/24/48V
MPPT tracking range: 30-430VDC, 90-500VDC, 120-500VDC, (model dependent)
Multiple charging modes: Photovoltaic, mains, PV priority, and hybrid
Multiple communication modes, RS485, Wi-Fi, dry contact
Compatible with lithium-ion and lead-acid batteries
Parallel operation capability for increased power output
Power Range: 500W to 5000W
Peak Power: Up to 10000W
Input Voltage: 12/24/48VDC
Output Voltage: 110/220VAC±5%
USB Output: 5V2A
Switching Time: <10ms
Frequency: 50Hz/60Hz switchable
Operating Temperature: -10℃ to +50℃
Rated Power: 300W - 8000W
Peak Power: 600W - 16000W
Input Voltage: 12/24/48VDC
Output Voltage: 110/220VAC±5%
USB Output: 5V 2A
Type-C Output: Optional (PD30W/PD60W)
Frequency: 50Hz±3 or 60Hz±3
Output Waveform: Pure sine wave
Efficiency: Up to 94%
Protection Features: Undervoltage, overvoltage, overload, over-temperature, short circuit, reverse connection protection.
