A Solar Combiner Box is an essential component in solar power systems that combines multiple strings of solar panels into one main output circuit. It provides critical protection functions including overcurrent protection, surge protection, and circuit isolation, ensuring the safety and efficiency of your solar installation.
ETEK Solar manufactures high-quality combiner boxes designed for solar photovoltaic systems, offering reliable performance and comprehensive protection for solar power systems of all sizes. From residential installations to utility-scale solar farms, we provide solutions at 600V, 1000V, and 1500V DC to meet diverse application requirements.
Comprehensive protection features including overcurrent protection, surge protection, and optional anti-reverse diodes to safeguard your investment.
Advanced design minimizes power losses and ensures reliable operation in extreme weather conditions with IP65 protection rating.
Multiple mounting options and easy wiring access reduce installation time and costs while ensuring compatibility with various system designs.

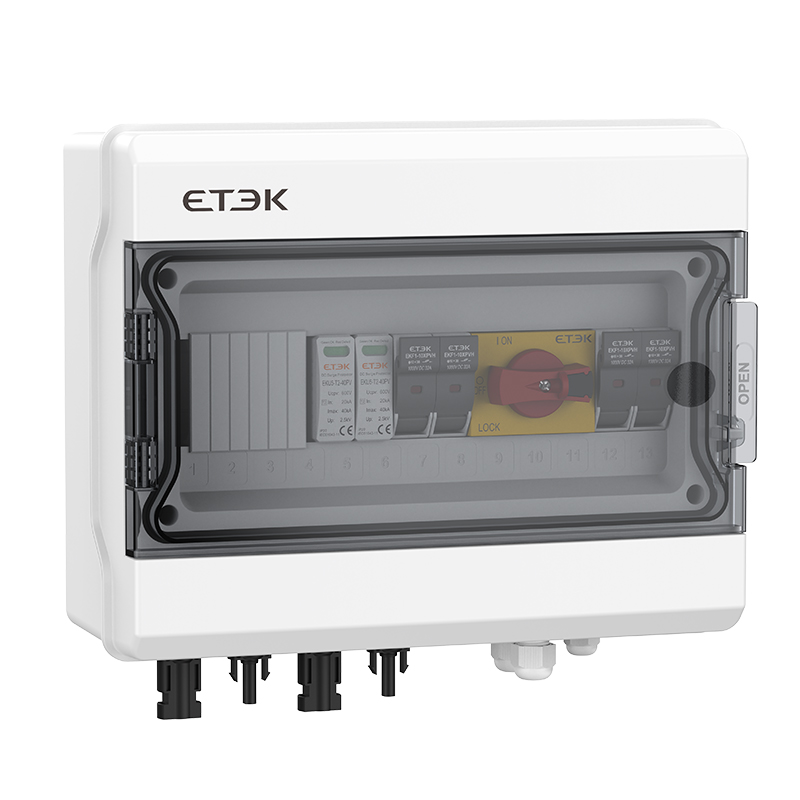

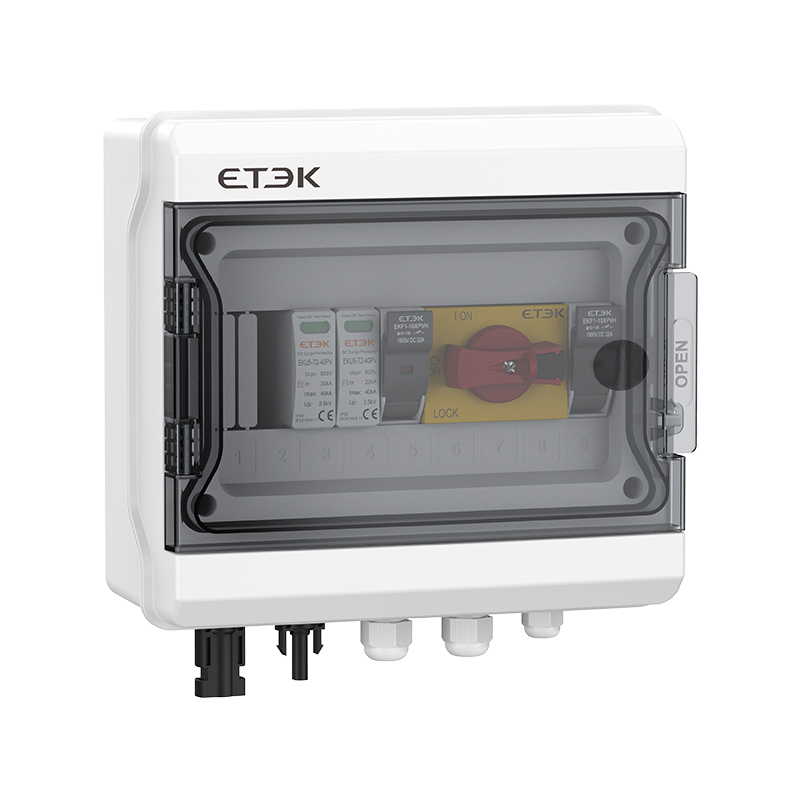

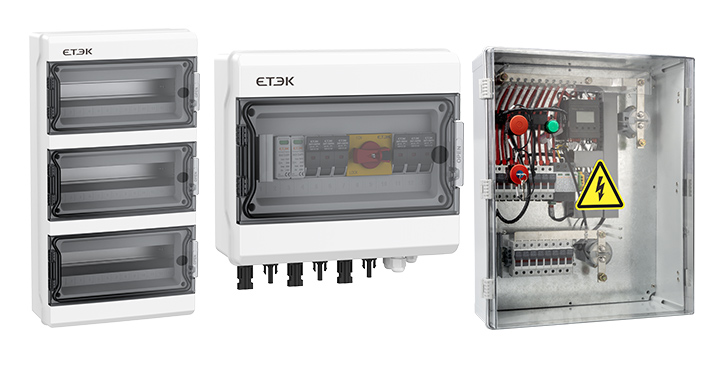

ETEK Solar's 600V DC combiner box is ideal for residential and small commercial solar installations. This compact yet robust solution combines multiple solar string inputs while providing essential protection features, most popular for homes.
.webp)
Max. DC Voltage: 600V
Input/Output Strings: 1-in / 1-out
Max. Input Current (per string): 15A (replaceable
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A

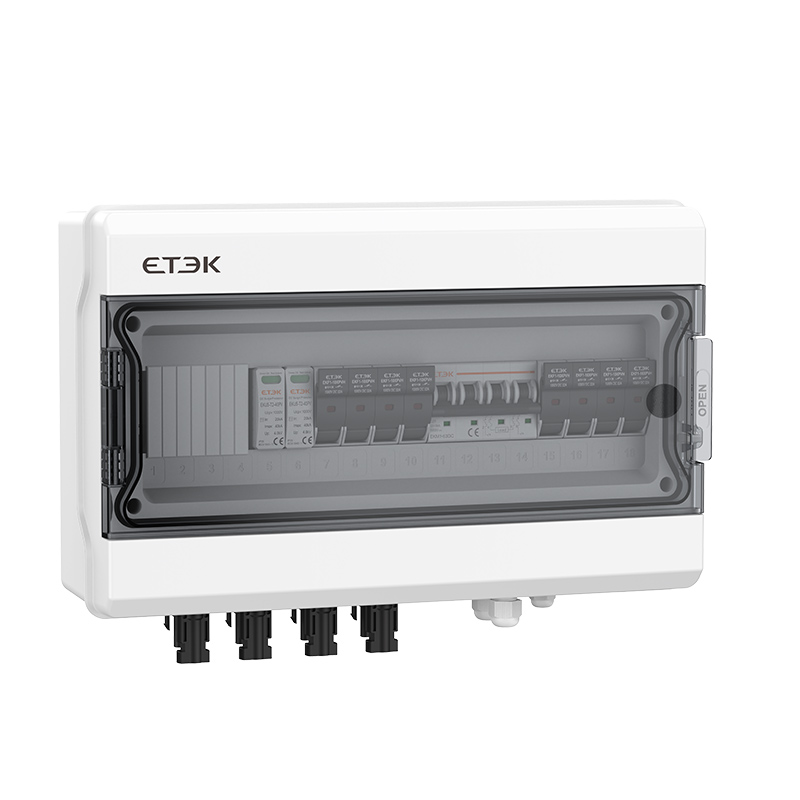

.webp)
Max. DC Voltage: 600V
Input/Output Strings: 2-in / 1-out
Max. Input Current (per string): 15A (replaceable
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A

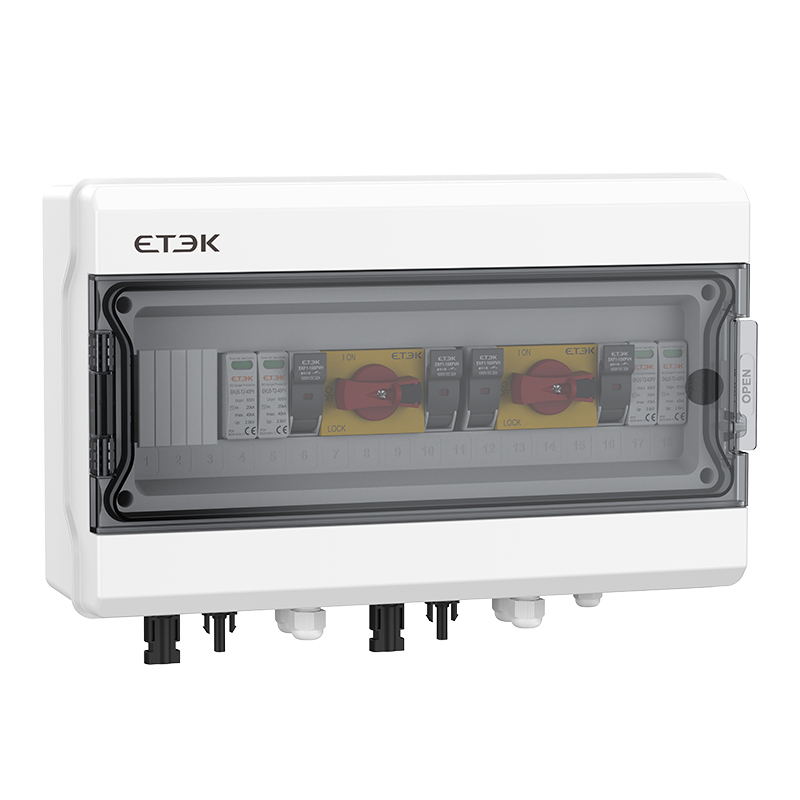

.webp)
Max. DC Voltage: 600V
Input/Output Strings: 2-in / 2-out
Max. Input Current (per string): 15A
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A

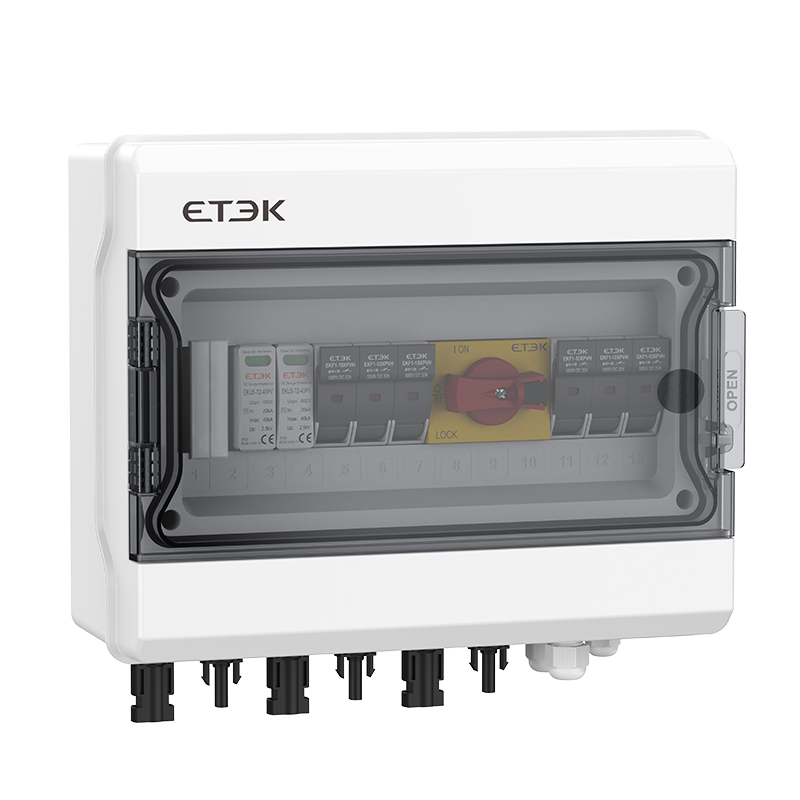

-1555.webp)
Max. DC Voltage: 600V
Input/Output Strings: 3-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 63A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCB, 2P, 600V/63A

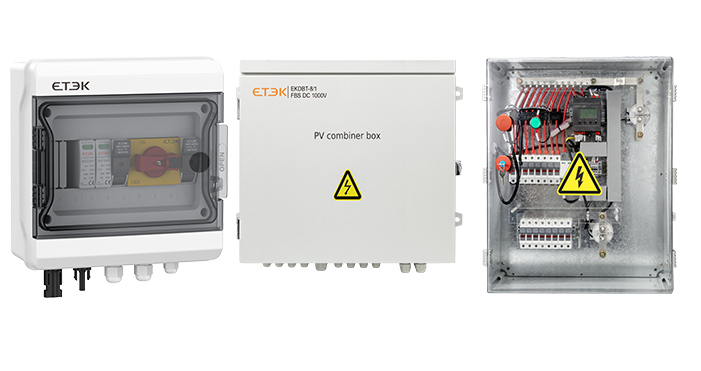

ETEK Solar's 1000V DC combiner box is engineered for medium to large-scale commercial solar installations. It offers advanced protection features and higher power handling capability.
Max. DC Voltage: 1000V
Input/Output Strings: 1-in / 1-out
Max. Input Current (per string): 15A
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 2-in / 1-out
Max. Input Current (per string): 15A
Max. Output Current: 30A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 3-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 60A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCB, 4P, 1000V/63A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 4-in / 1-out
Max. Input Current (per string): 15A
Max. Output Current: 60A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCB, 1000V/63A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 2-in / 2-out
Max. Input Current (per string): 15A
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator, 1000V/32A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 4-in / 2-out
Max. Input Current (per string): 15A
Max. Output Current: 30A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator, 1000V/32A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 6-in / 2-out
Max. Input Current (per string): 20A
Max. Output Current: 60A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 20A
DC Protection Switch: DC MCB, 1000V/63A
Enclosure: PC Material type & IP65
Max. DC Voltage: 1000V
Input/Output Strings: 8-in / 1-out
Max. Input Current (per string): 25A(Changeable)
Max. Output Current: 250A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 25A
DC Protection Switch: DC MCCB, 1000V/250A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1000V
Input/Output Strings: 12-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 250A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 20A
DC Protection Switch: DC MCCB, 1000V/250A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1000V
Input/Output Strings: 16-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCCB, 1000V/400A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1000V
Input/Output Strings: 20-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCCB, 1000V/400A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1000V
Input/Output Strings: 24-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 630A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCCB, 1000V/630A
Enclosure: Metal, IP65, IK10
ETEK Solar's 1500V DC combiner box is a high-quality solution designed for utility-scale solar power plants. Equipped with a 1500V DC disconnector or molded case circuit breaker, PV fuses and Type 2 PV surge protector, it provides comprehensive overcurrent and overvoltage protection to ensure efficiency and reliability in high-power applications.
Max. DC Voltage: 1500V
Input/Output Strings: 12-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 250A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/250A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1500V
Input/Output Strings: 20-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/400A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1500V
Input/Output Strings: 16-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/400A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1500V
Input/Output Strings: 24-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 630A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/630A
Enclosure: Metal, IP65, IK10
AFCI Combiner Box (Arc Fault Circuit Interrupter Combiner Box) is a critical component in photovoltaic (PV) solar power systems that integrates arc fault protection with the traditional functions of a PV combiner box.
AFCI functionality identifies and distinguishes hazardous arc faults (caused by damaged wires, loose connections, etc.) from normal electrical behavior. Upon detection of such faults, it trips the circuit and prevents continuous arcing that could lead to fire risks.
DC Arc-Fault Detection and Interruption
Up to 1500V DC System Support
Up to 32 Detection Channels
Audible and Visual Alarm
RS485 Communication
Manual and Automatic Reset
Outdoor Stainless Steel Enclosure
Max. DC Voltage: 1000V
Input Strings: 8,12,16
Output Strings: 1 string
Max. Input Current (per string): 15A/20A/25A/30A
Max. Output Current: 100-400A
Surge Protection: Type 2, 40kA
Enclosure Options:Full-plastic sealed box or Powder-coated stainless steel
Voltage monitoring range: 450-1000VDC
ETEK Solar provides IP65 plastic electrical enclosures and waterproof plastic power distribution boxes for a wide range of indoor and outdoor applications. Manufactured from high-quality ABS and PC, these enclosures are waterproof, dustproof, corrosion resistant, and durable, offering dependable protection for electrical wiring and components.
They are widely used in solar power systems, outdoor electrical installations, control systems, and industrial distribution applications. Designed for safety, easy maintenance, and efficient installation, ETEK Solar plastic distribution boxes deliver reliable performance in harsh environments.
Standard:EN 60670-1, EN 60670-24
Available Module: 4/8/12/18/24/36
IP Rating: IP65
Ambient Temperature: -5°C to +40°C
Material Temp. Resistance: -25°C to +80°C
Standard:IEC 60529,IEC 62262:2021,EC 60695-2-10:2013.
Available Models: 4/6/9/13/18/26/36/39 (with or without terminals)
Neutral & Ground Bar Configuration: 6-20 holes depending on model
Layer Options: Single, Double, or Triple depending on model

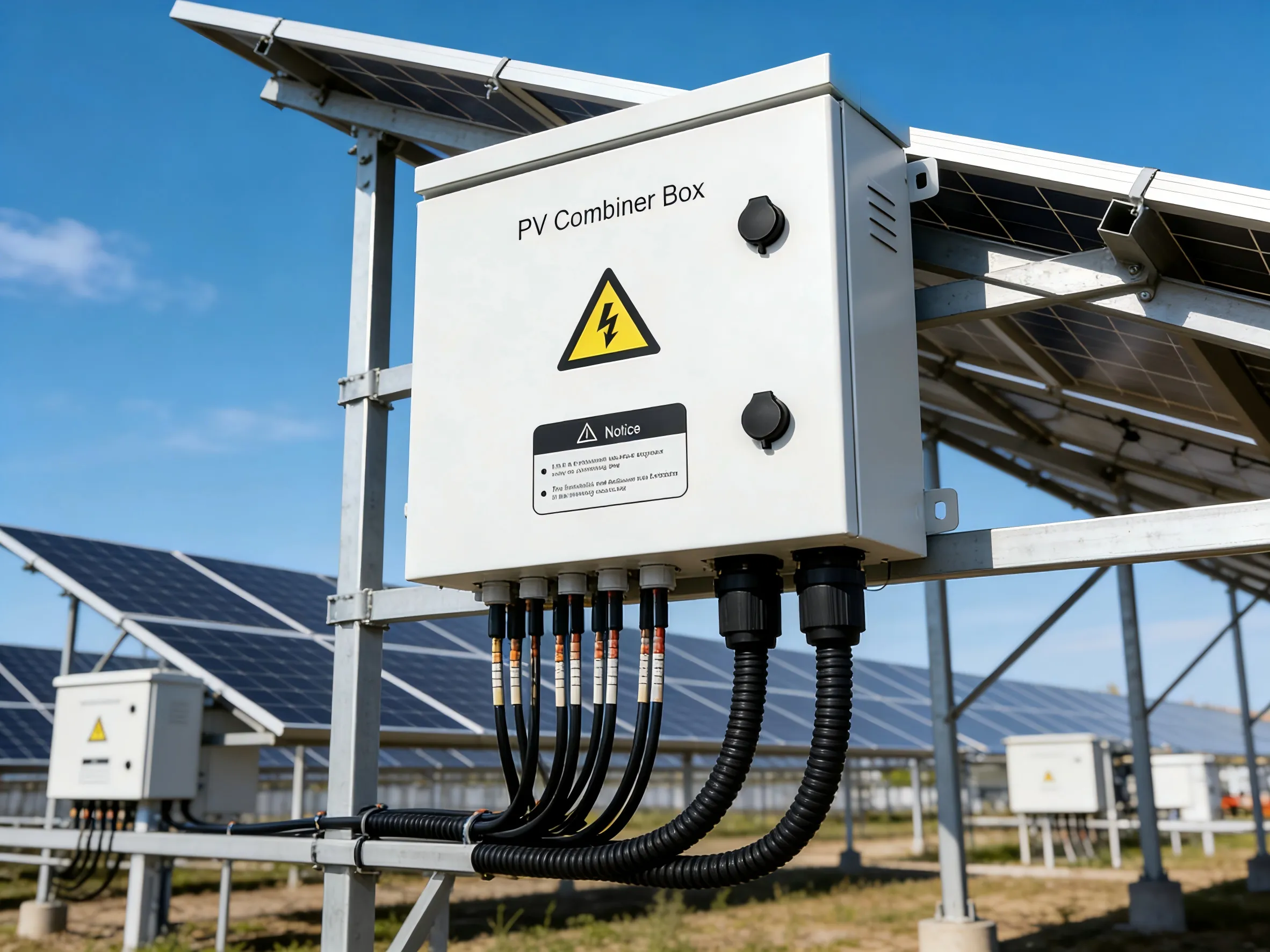

1. Determine Your System Voltage
Check your inverter specifications and overall system design to identify whether you need a 600V, 1000V, or 1500V combiner box.
• 600V: Residential systems
• 1000V: Commercial installations
• 1500V: Utility-scale projects
2. Calculate Number of String Inputs
Count how many parallel strings your system will have. Choose a combiner box with at least that many inputs, plus 1-2 extra for future expansion.
3. Determine Maximum String Current
Check your solar panel specifications for the short-circuit current (Isc) and apply safety factors. Select a combiner box that can handle this current per string.
4. Select Protection Features
Consider what protection features you need:
• Anti-reverse diodes prevent backflow current
• AFCI protection for fire safety
• Surge protection for lightning/transients
5. Consider Monitoring Needs
Decide if you need string-level monitoring capabilities to track performance and quickly identify underperforming strings.
A PV combiner box combines multiple strings of solar panels into one main output circuit. It's essential for any solar installation with multiple strings as it provides overcurrent protection, surge protection, and circuit isolation, ensuring the safety and efficiency of your solar system.
The voltage level should match your inverter and overall system design. Generally, 600V systems are used for residential applications, 1000V for commercial installations, and 1500V for utility-scale projects. Always check your inverter specifications and consult with a professional if unsure.
AFCI (Arc Fault Circuit Interrupter) combiner boxes include special technology that detects dangerous electric arcs and automatically shuts down the affected circuit. This provides an additional layer of fire protection beyond what standard combiner boxes offer. AFCI boxes are especially recommended for installations on buildings or where fire safety is a particular concern.
Anti-reverse diodes prevent current from flowing backward through solar panels when they're shaded or malfunctioning. They're particularly useful in systems where partial shading is common, or where multiple strings have different orientations. However, they do introduce a small power loss. Modern systems with optimizers or microinverters may not need them.
Look for combiner boxes with relevant safety certifications such as IEC 61439-2 for electrical control assemblies, UL 1741 for grid-connected equipment, and IP65 or higher rating for outdoor installations. Regional certifications vary, so check local requirements for your specific installation location.
