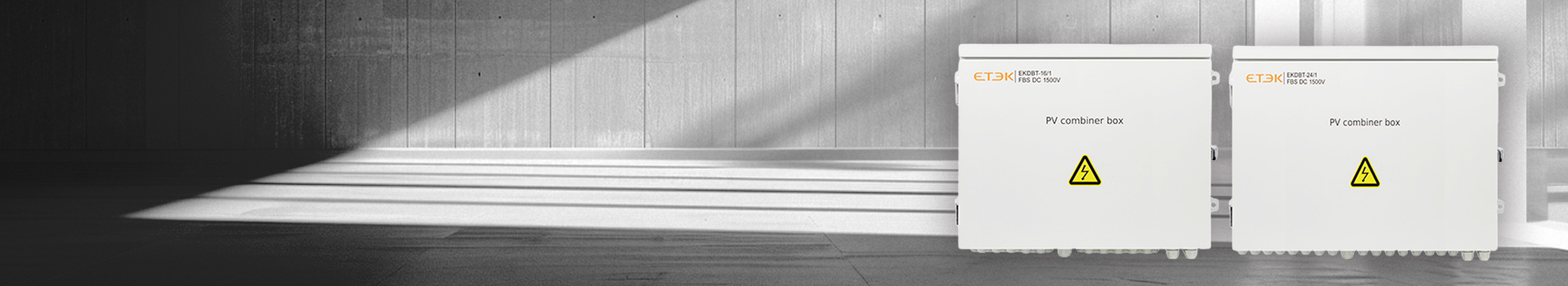

ETEK Solar's 1500V DC combiner box is a high-quality solution designed for utility-scale solar power plants. Equipped with a 1500V DC disconnector or molded case circuit breaker, PV fuses and Type 2 PV surge protector, it provides comprehensive overcurrent and overvoltage protection to ensure efficiency and reliability in high-power applications.
Max. DC Voltage: 1500V
Input/Output Strings: 12-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 250A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/250A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1500V
Input/Output Strings: 20-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/400A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1500V
Input/Output Strings: 16-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/400A
Enclosure: Metal, IP65, IK10
Max. DC Voltage: 1500V
Input/Output Strings: 24-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 630A
Surge Protection: Type 2, 40kA
DC Fuse: 10x85mm, 15A
DC Protection Switch: DC MCCB, 1500V/630A
Enclosure: Metal, IP65, IK10
