ETEK Solar provides dependable AC Surge Protection Devices (SPDs) for PV systems, shielding inverters, distribution panels, and sensitive electronics from transient surges.
Standard: IEC/EN 61643-11
Surge Rating: Imax=40kA (8/20 µs)
IEC/EN Category: Type 2/Class II
Max. continuous operating voltage: 150, 275, 320, 385, 440V
Housing: Pluggable Design
Standard: IEC/EN 61643-11
Surge Rating: Imax=20kA (8/20 µs)
IEC/EN Category: Type 2/Class II
Max. continuous operating voltage: 150, 275, 320, 385, 440V
Housing: Pluggable Design

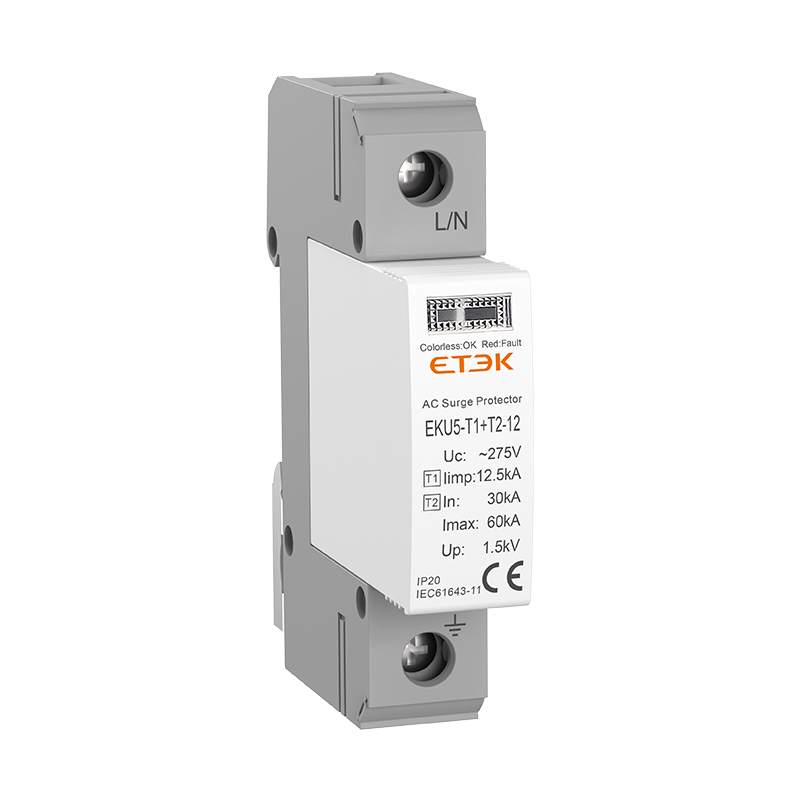

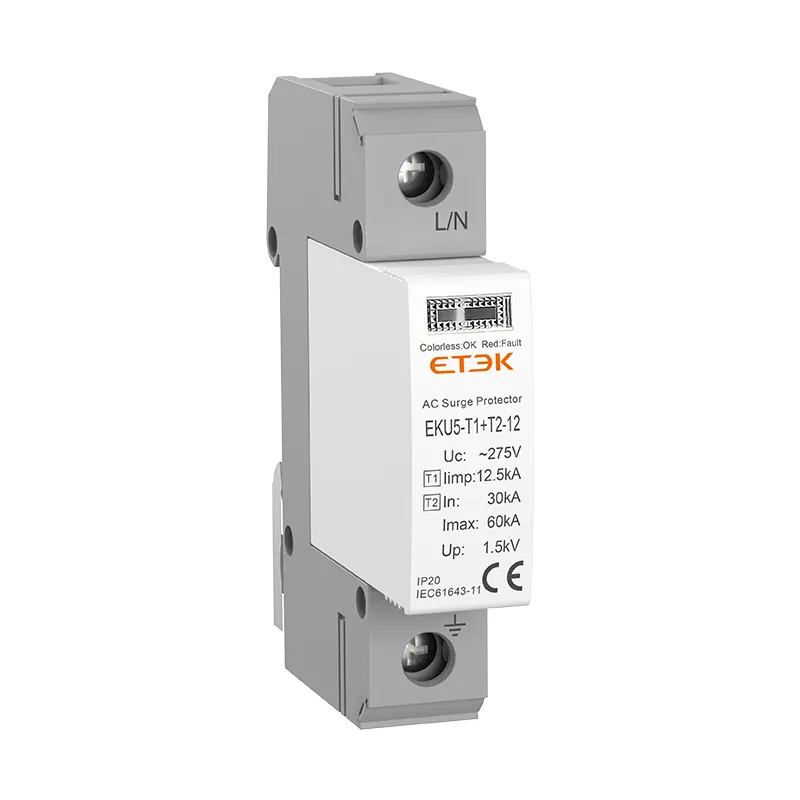

Standard: IEC/EN 61643-11
Surge Rating: Iimp=12.5kA (10/350 µs), In=30kA (8/20 µs)
IEC/EN Category: Class I+II / Type 1+2
Max. continuous operating voltage: 150, 275, 320, 385V
Housing: Pluggable Design

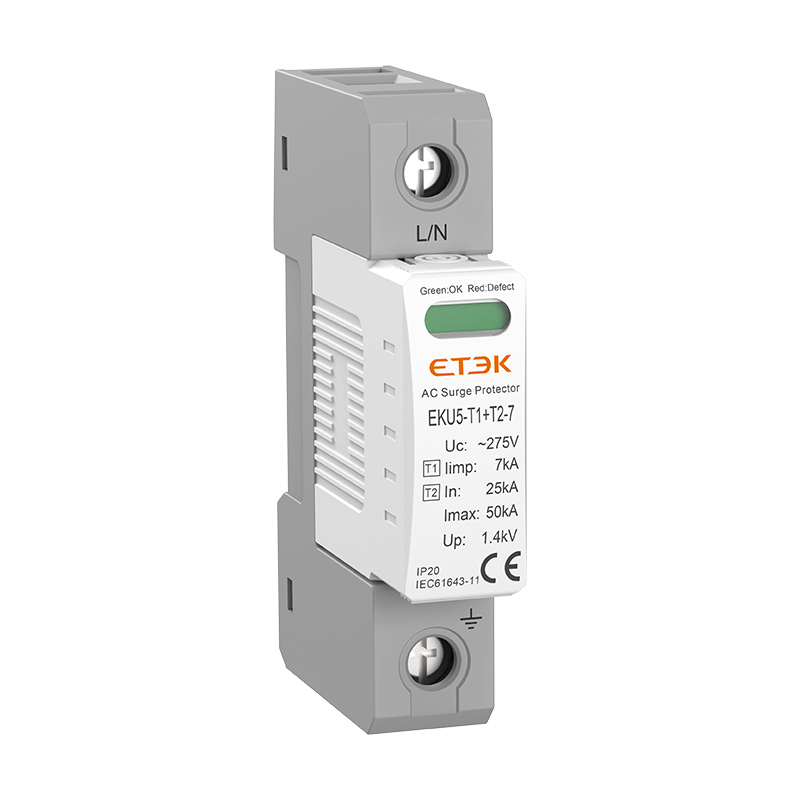

Standard: IEC/EN 61643-11
Surge Rating: Iimp=7kA (10/350 µs), In=25kA (8/20 µs)
IEC/EN Category: Class I+II / Type 1+2
Max. continuous operating voltage: 150, 275, 320, 385, 440V
Housing: Pluggable Design
