Standard: IEC60947-3
Rated current: 32A
Rated voltage: 1000VDC
Number of poles: 1P
Conditional Short-circuit Current: 30kA
Utilization Category: DC-PV0
Ambient air temperature: -5...+40 ºC

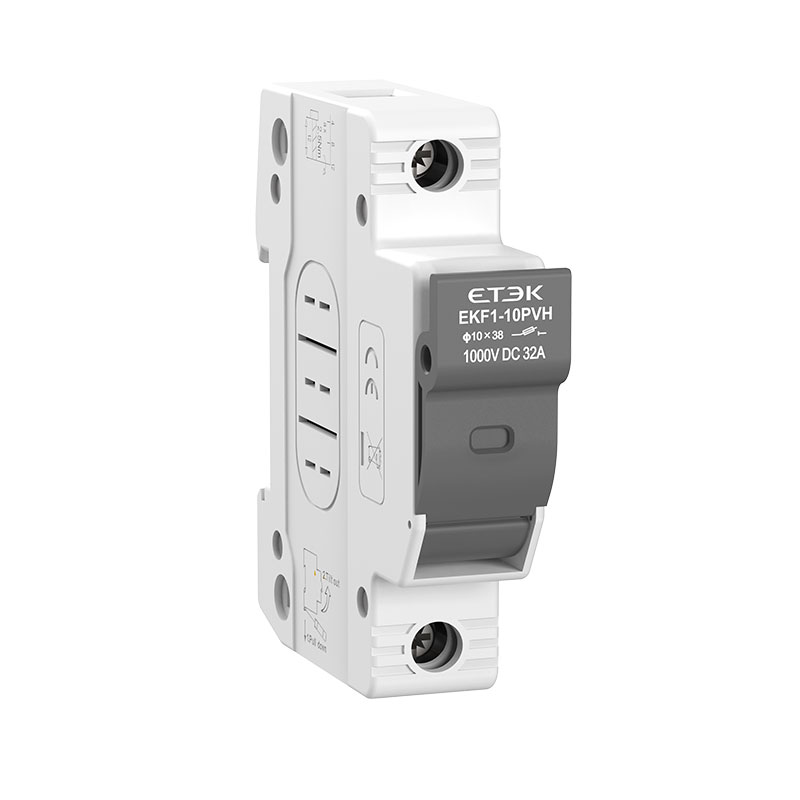

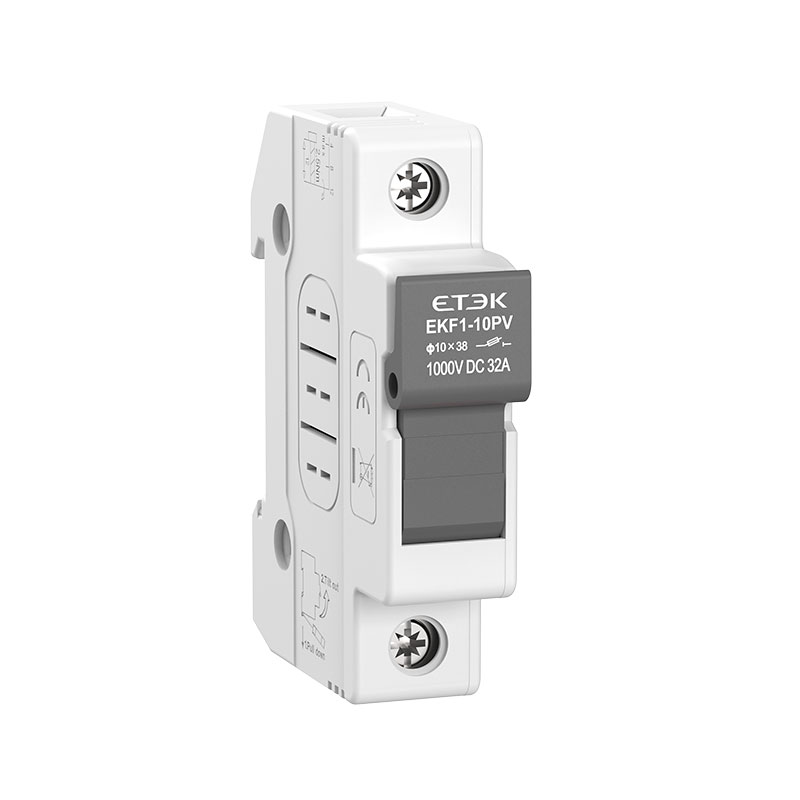

EKF1-10PV Fuse Switch Disconnector offers robust circuit protection for photovoltaic systems and high-voltage DC applications. Key features include:
• 1000VDC Rated Voltage: Designed for modern solar installations requiring high-voltage capacity
• 32A Current Rating: Optimal protection for medium-current PV circuits
• gPV Protection Characteristics: Specifically engineered for photovoltaic system requirements
• Compact DIN Rail Mounting: 18mm width housing fits standard EN60715 35mm DIN rails
• 10×38mm Fuse Links: Compatible with standard PV fuse dimensions
• IEC60947-3 Compliance: Meets international safety standards for electrical disconnectors
|
Model |
EKF1-10PV |
EKF1-10XPV |
|
Standard |
IEC60269-6 |
|
|
Utilization category |
DC-PV0 |
|
|
Number of poles |
1P |
|
|

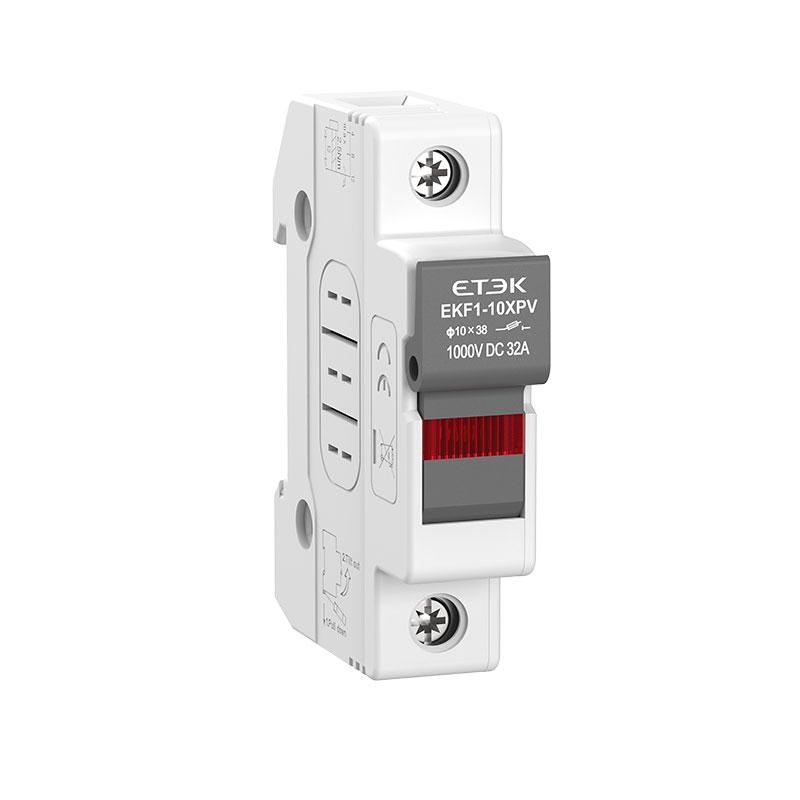

Operating State Indicator |
No |
Yes |
|
Rated operational voltage (Ue) |
1000 VDC |
|
|
Rated operational current (Ie) |
32A |
|
|
Rated insulation voltage (Ui) |
1000V |
|
|
Rated impulse withstand voltage (Uimp) |
6kV |
|
|
Conventional free air thermal current (Ith) |
same as Ie |
|
|
Conditional Short-circuit Current |
30kA |
|
|
Size of fuse link |
10x38mm |
|
|
Pollution Degree |
3 |
|
|
Degree of Protection |
IP20,after installation |
|
|
Max. tightening torque |
2.5Nm |
|
|
Max. Terminal size for cable |
6mm² |
|
|
Installation |
Mounting on 35mm DIN rail |
|
|
Operating temperature |
-5°C ... +40°C |
|
|
Storage temperature |
-25°C ... +55°C |
|
