1000V DC Combiner Box - ETEK Solar

ETEK Solar's 1000V DC combiner box is engineered for medium to large-scale commercial solar installations. It offers advanced protection features and higher power handling capability.

1000V 1-in 1-out PV Combiner Box with Type 2 SPD

Max. DC Voltage: 1000V
Input/Output Strings: 1-in / 1-out
Max. Input Current (per string): 15A
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
Enclosure: PC Material type & IP65

2 in 1 out 1000V Dual String Industrial PV Combiner Box with SPD

Max. DC Voltage: 1000V
Input/Output Strings: 2-in / 1-out
Max. Input Current (per string): 15A
Max. Output Current: 30A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator Switch,600V/32A
Enclosure: PC Material type & IP65

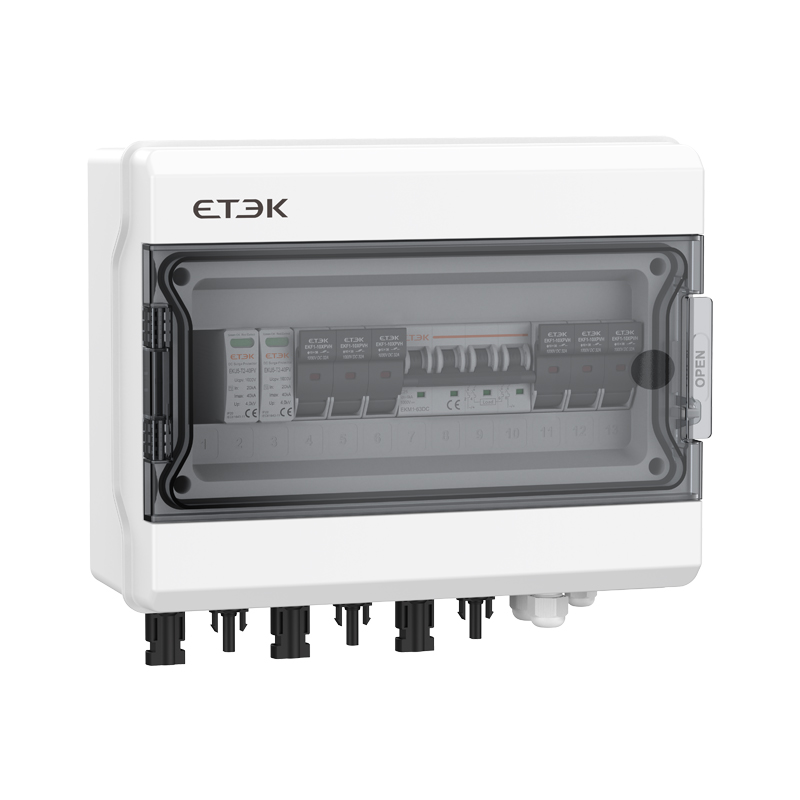

3 Input 1 Output 1000V Triple-String PV Combiner Box with Comprehensive Protection

Max. DC Voltage: 1000V
Input/Output Strings: 3-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 60A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCB, 4P, 1000V/63A
Enclosure: PC Material type & IP65

4 Input 1 Output 1000V 4-String PV Combiner Box with MCB Protection for High-Current Applications

Max. DC Voltage: 1000V
Input/Output Strings: 4-in / 1-out
Max. Input Current (per string): 15A
Max. Output Current: 60A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCB, 1000V/63A
Enclosure: PC Material type & IP65

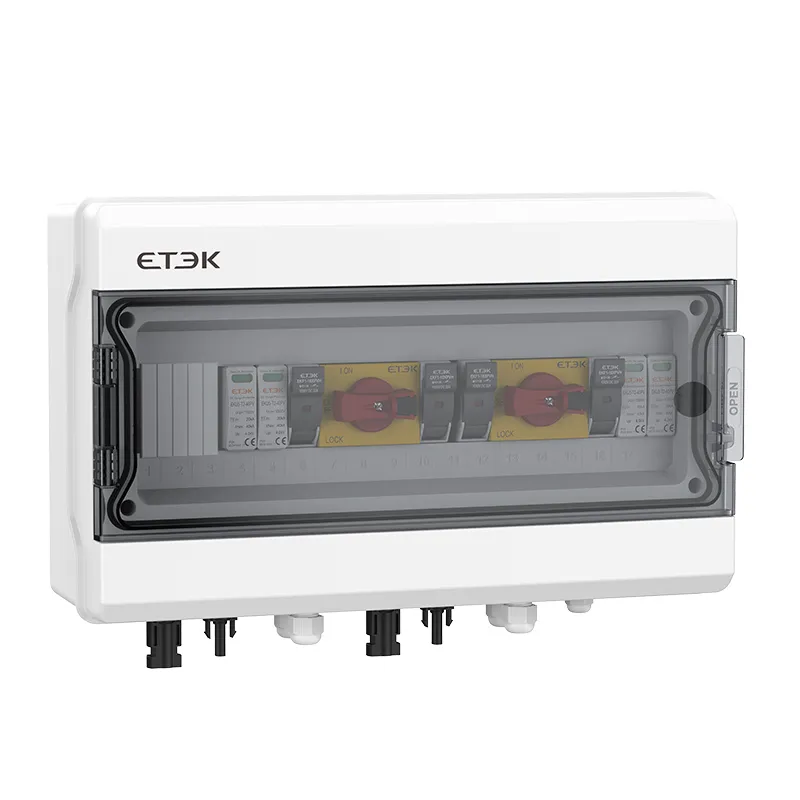

1000V 2-Input, 2- Output PV Combiner Box with Integrated Safety

Max. DC Voltage: 1000V
Input/Output Strings: 2-in / 2-out
Max. Input Current (per string): 15A
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator, 1000V/32A
Enclosure: PC Material type & IP65

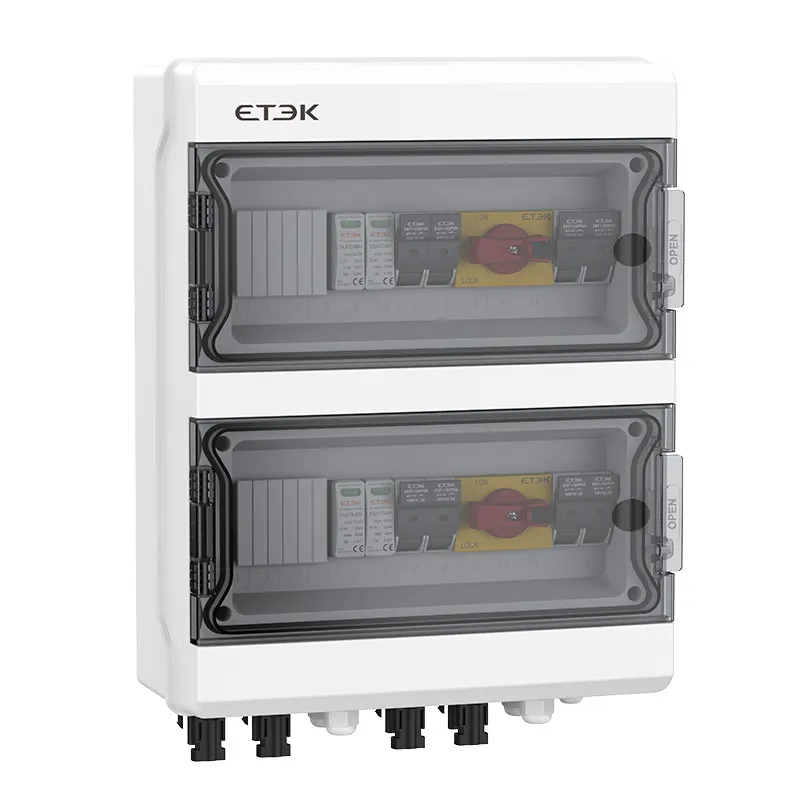

1000V 4-Input 2-Output PV Combiner Box for Commercial Installations

Max. DC Voltage: 1000V
Input/Output Strings: 4-in / 2-out
Max. Input Current (per string): 15A
Max. Output Current: 30A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator, 1000V/32A
Enclosure: PC Material type & IP65

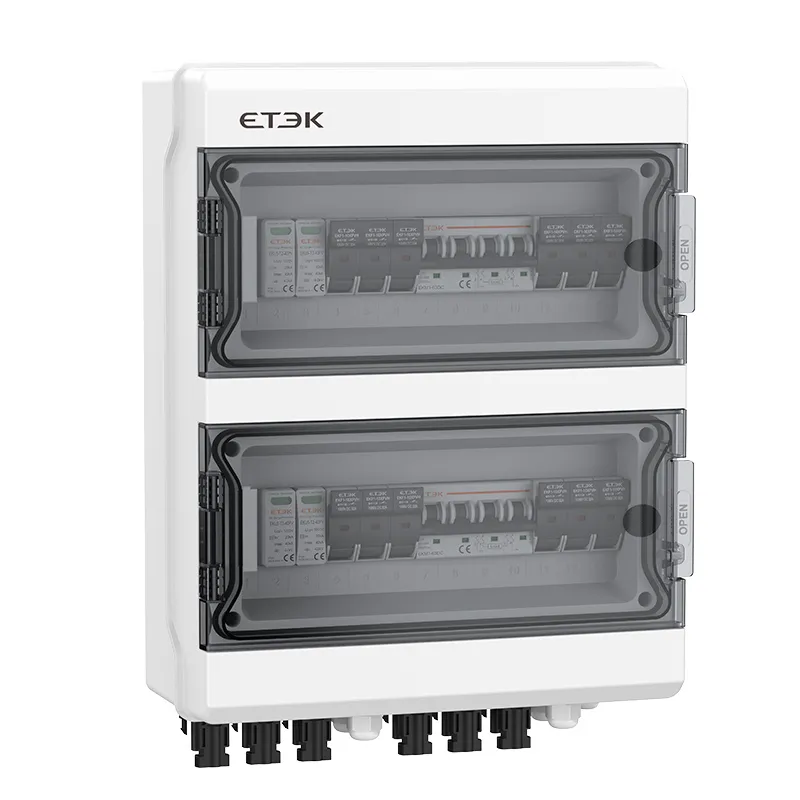

1000V 6-Input 2-Output PV Combiner Box with MCB Protection for High-Current Applications

Max. DC Voltage: 1000V
Input/Output Strings: 6-in / 2-out
Max. Input Current (per string): 20A
Max. Output Current: 60A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 20A
DC Protection Switch: DC MCB, 1000V/63A
Enclosure: PC Material type & IP65

1000V Metal Enclosure 8 Inputs 1 output PV Combiner Box with DC MCCB

Max. DC Voltage: 1000V
Input/Output Strings: 8-in / 1-out
Max. Input Current (per string): 25A(Changeable)
Max. Output Current: 250A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 25A
DC Protection Switch: DC MCCB, 1000V/250A
Enclosure: Metal, IP65, IK10

1000V Metal Enclosure 12 Inputs 1 output PV Combiner Box with DC MCCB

Max. DC Voltage: 1000V
Input/Output Strings: 12-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 250A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 20A
DC Protection Switch: DC MCCB, 1000V/250A
Enclosure: Metal, IP65, IK10

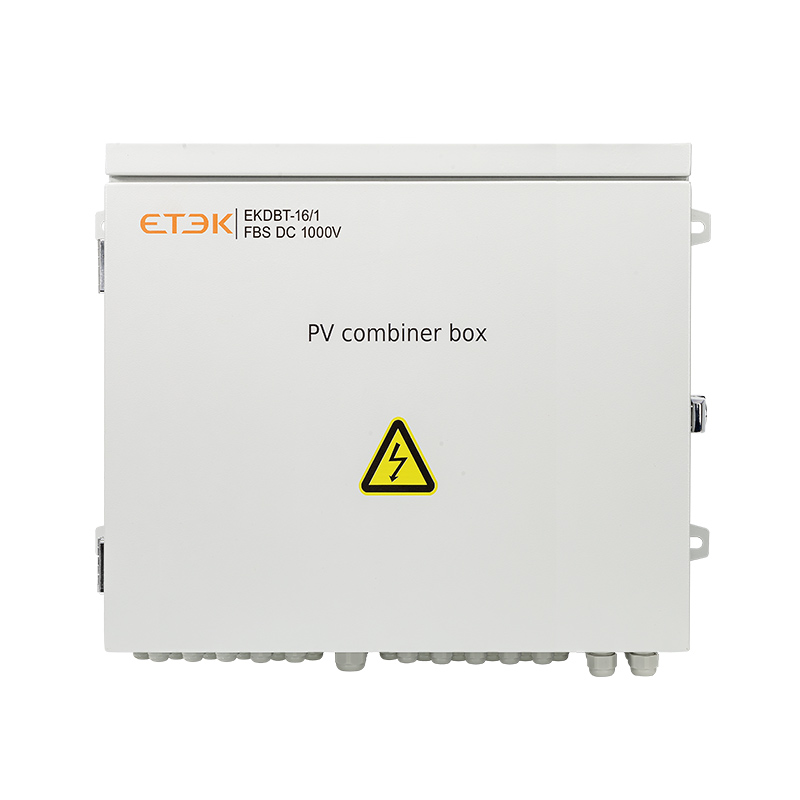

1000V 16 Inputs 1 output Metal Enclosure PV Combiner Box with DC MCCB

Max. DC Voltage: 1000V
Input/Output Strings: 16-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCCB, 1000V/400A
Enclosure: Metal, IP65, IK10

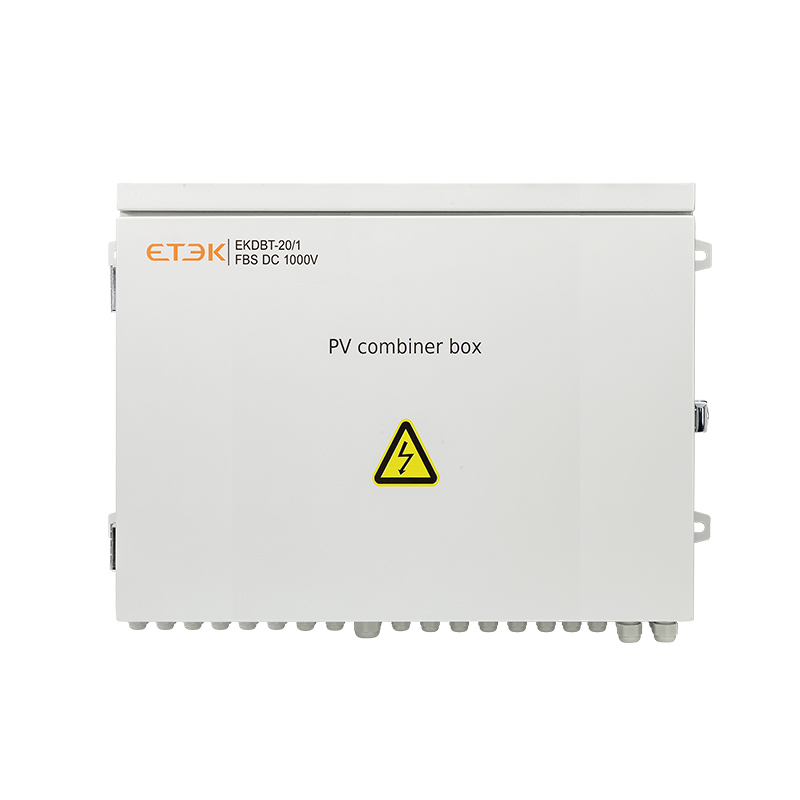

1000V 20 Inputs 1 output Metal Enclosure PV Combiner Box with 400A DC MCCB

Max. DC Voltage: 1000V
Input/Output Strings: 20-in / 1-out
Max. Input Current (per string): 20A
Max. Output Current: 400A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCCB, 1000V/400A
Enclosure: Metal, IP65, IK10

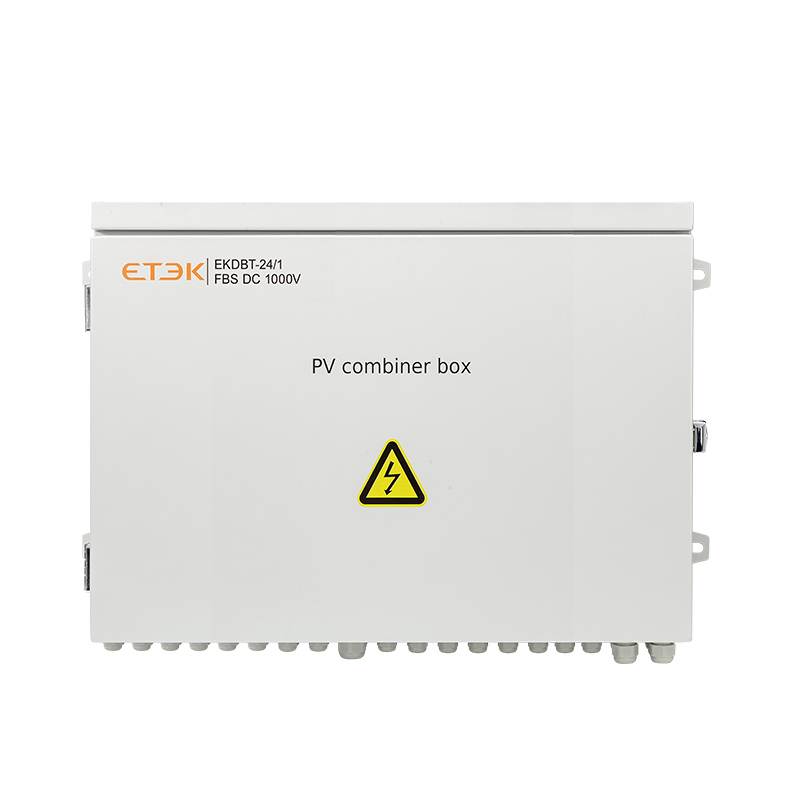

1000V 24 Inputs 1 output Metal Enclosure PV Combiner Box with 630A DC MCCB

Max. DC Voltage: 1000V
Input/Output Strings: 24-in / 1-out
Max. Input Current (per string): 25A
Max. Output Current: 630A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC MCCB, 1000V/630A
Enclosure: Metal, IP65, IK10
