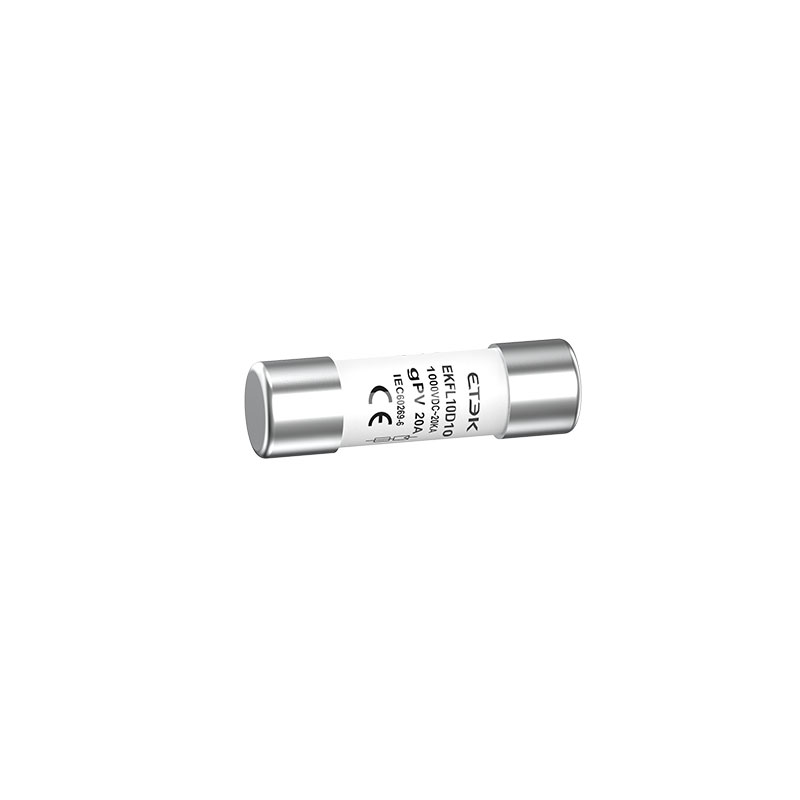

EKFL10D10 10x38mm 8A-32A 1000V Cylindrical Fuse Links for Solar Applications

Name: EKFL10D10 10x38mm 8A-32A 1000V Cylindrical Fuse Links for Solar Applications
Brand: ETEK
SKU: 00033
Rating: 4.9 (67 reviews)

Standard: IEC60269-6

Rated current: 8~32A

Rated voltage: 1000VDC

Size: 10x38mm

Rated breaking capacity: 30kA

Utilization category: gPV

Rated power dissipation: ≤4.3W

Operating temperature: -40°C...+80 °C

Certificates: CE, CB, TUV

Inquiry Now

Product Introduction

EKFL10D10 cylindrical fuse link series delivers reliable overcurrent protection for 1000V photovoltaic systems and industrial equipment.

With compact 10×38mm dimensions and low power dissipation (max 4.2W at 32A), the minimizes energy loss while maintaining reliable operation in harsh environments.

Applications:

• Residential rooftop PV arrays

• Commercial solar farms

• Industrial power storage systems

Product Parameters

Model	EKFL10D10
Standard	IEC60269-6
Rated voltage	1000VDC
Rated cureent	8A~32A
Rated breaking capacity	30kA
Utilization category	gPV
Rated power	no more than 2.7W at 0.7In
	no more than 4.32W at 1In
Size	10mmx38mm
Filling material	Quartz Sand
Arc voltage limits	3500V
Operating temperature	-40°C ... 80°C
Storage temperature	-40°C ... 90°C
