ETEK Solar is committed to delivering high-performance Surge Protection Devices (SPDs) designed specifically for photovoltaic (PV) systems. Our SPDs ensure optimal protection of solar installations against transient overvoltages caused by lightning strikes and grid-related electrical disturbances.

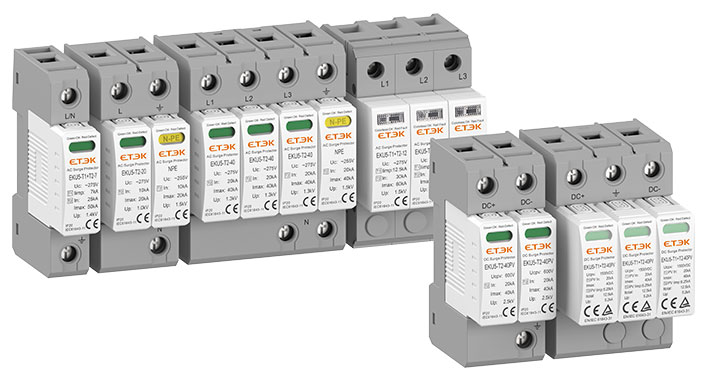

We specialize in providing Type 1+2 SPDs and Type 2 SPDs, tailored for both DC and AC applications in solar systems.

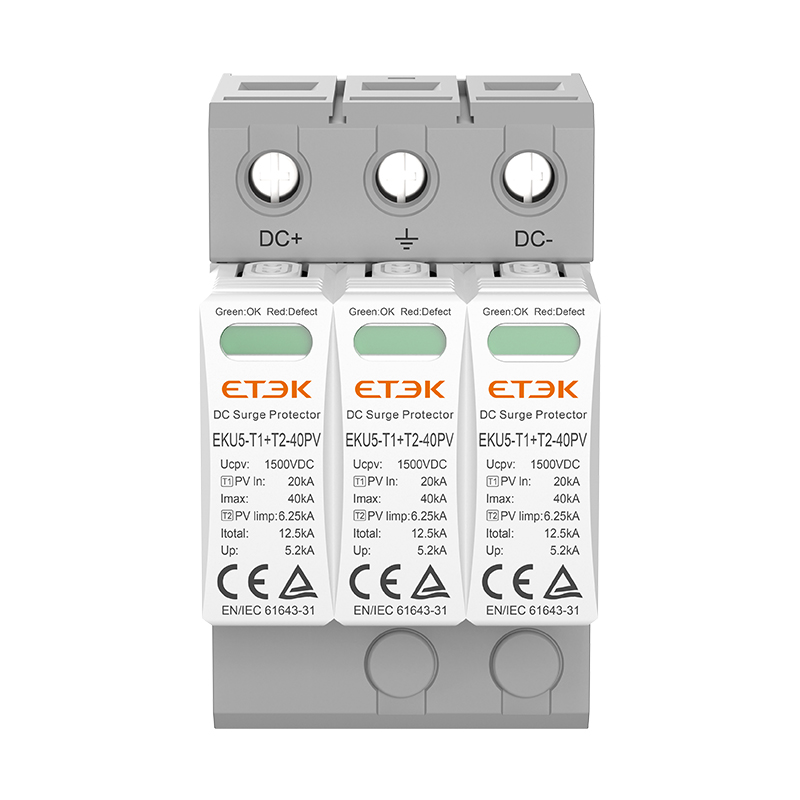

ETEK Solar's DC Surge Protection Devices are expertly designed to safeguard the DC side of photovoltaic systems, including solar panels, combiner boxes, and inverters, against overvoltages caused by lightning or power disturbances.
Standard: IEC/EN 61643-31
Surge Rating: Imax=40kA (8/20 µs)
Voltage protection level (Up):<5,2kV
IEC/EN Category: Class II / Type 2
Max. continuous operating voltage (Ucpv):1000,1500V
Housing: Pluggable Design
Standard: IEC/EN 61643-31
Surge Rating: Imax=40kA (8/20 µs)
Voltage protection level (Up): <5,2kV
IEC/EN Category: Class II / Type 2
Max. continuous operating voltage (Ucpv): 600,800, 1000,1500V
Housing: Pluggable Design
Standard: IEC/EN 61643-31
Surge Rating: Imax=20kA (8/20 µs)
Voltage protection level (Up): <5,2kV
IEC/EN Category: Class II / Type 2
Max. continuous operating voltage (Ucpv): 600, 800,1000,1500V
Housing: Pluggable Design
ETEK Solar provides dependable AC Surge Protection Devices (SPDs) for PV systems, shielding inverters, distribution panels, and sensitive electronics from transient surges.
Standard: IEC/EN 61643-11
Surge Rating: Imax=40kA (8/20 µs)
IEC/EN Category: Type 2/Class II
Max. continuous operating voltage: 150, 275, 320, 385, 440V
Housing: Pluggable Design
Standard: IEC/EN 61643-11
Surge Rating: Imax=20kA (8/20 µs)
IEC/EN Category: Type 2/Class II
Max. continuous operating voltage: 150, 275, 320, 385, 440V
Housing: Pluggable Design
Standard: IEC/EN 61643-11
Surge Rating: Iimp=12.5kA (10/350 µs), In=30kA (8/20 µs)
IEC/EN Category: Class I+II / Type 1+2
Max. continuous operating voltage: 150, 275, 320, 385V
Housing: Pluggable Design
Standard: IEC/EN 61643-11
Surge Rating: Iimp=7kA (10/350 µs), In=25kA (8/20 µs)
IEC/EN Category: Class I+II / Type 1+2
Max. continuous operating voltage: 150, 275, 320, 385, 440V
Housing: Pluggable Design
ETEK Solar specializes in providing high-perform
ETEK Solar specializes in providing high-performancen.
ETEK Solar specializes in providing high-pern.
At ETEK Solar, we combine advanced technology with stringent quality control to ensure our Type 1+2 and Type 2 Surge Protection Devices meet the needs of solar PV systems around the globe. With our expertise, you can ensure the safety, reliability, and efficiency of your solar investments.
Contact us today to learn more about our DC and AC SPD solutions!
