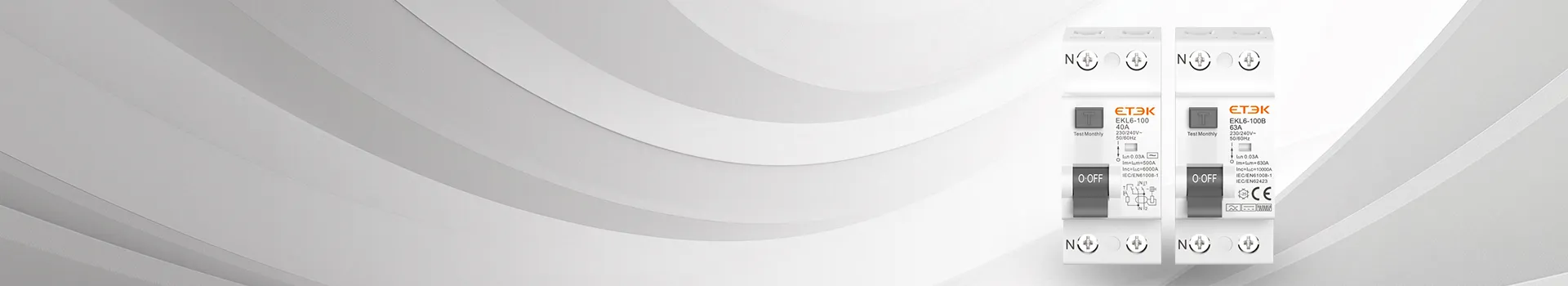

Residual current protection devices specially designed for photovoltaic installations, offering personnel protection against electric shock.
Type AC: Protects against residual AC currents.
Type A: Offers protection against alternating currents and pulsed DC currents.
Type B: Advanced protection for AC, pulsed DC, and smooth DC residual currents, perfect for EV charging stations and solar battery systems.
• AC, A, and B type sensitivity
• 30mA to 300mA sensitivity options
• Suitable for transformer-less inverters
Standard: IEC61008-1&IEC62423
RCD Type: B
Rated current: 16~100A
Rated voltage: 230/400V~240/415V
Poles: 2P(1P+N), 4P(3P+N), N Pole on left
Rated sensitivity: 30mA, 100mA, 300mA
Rated short-circuit breaking capacity: 6kA, 10kA
Ambient air temperature: -25...+40ºC
Connection: Bi-Directional
Standard: IEC61008-1
RCD Type: AC, A
Rated current: 16~100A
Rated voltage: 230/400V~240/415V
Poles: 2P(1P+N), 4P(3P+N), N Pole on left
Rated sensitivity: 30mA, 100mA, 300mA
Rated short-circuit breaking capacity: 6kA, 10kA
Ambient air temperature: -25...+40ºC
Connection: Bi-Directional
Standard: IEC61008-1,IEC62423
RCD Type: B
Rated current: 16~63A
Rated voltage: 230/400V~240/415V
Poles: 2P(1P+N), 4P(3P+N), N Pole on right
Rated sensitivity: 30mA, 100mA, 300mA
Rated short-circuit breaking capacity: 10kA
Ambient air temperature: -25...+40ºC
Connection: Bi-Directional
Standard: IEC61008-1
Type: AC, A
Rated current: 16~63A
Rated voltage: 230/400V~240/415V
Poles: 2P(1P+N), 4P(3P+N), N Pole on right
Rated sensitivity: 30mA, 100mA, 300mA
Rated short-circuit breaking capacity: 6kA, 10kA
Ambient air temperature: -25...+40ºC
Connection: Bi-Directional
