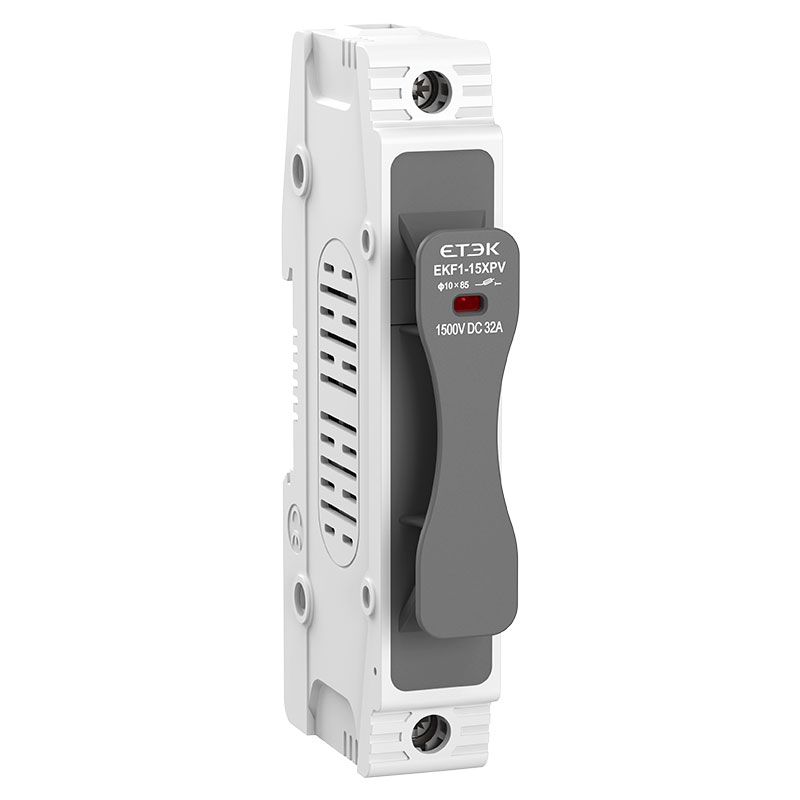

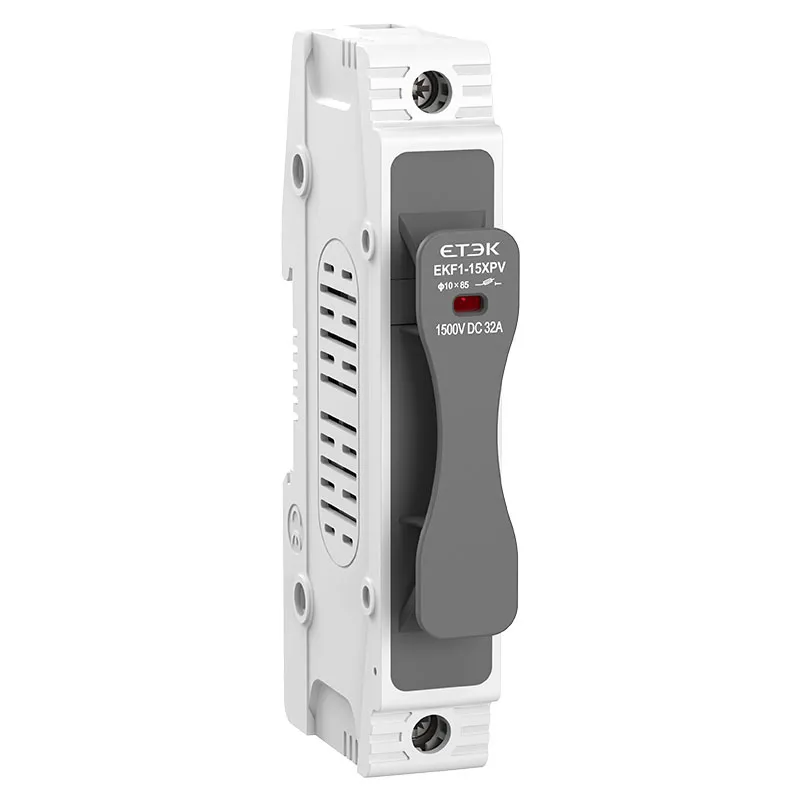

Name: EKF1-15PV 1500VDC 35A Solar Photovoltaic Fuse Switch Disconnector with DIN Rail Mounting
Brand: ETEK
SKU: 00032
Rating: 4.1 (66 reviews)

Product Introduction

EKF1-15PV series fuse switch disconnector provides robust overcurrent protection for commercial solar arrays and utility-scale PV plants requiring high-voltage DC protection, featuring:

• 1500VDC maximum voltage rating

• 35A rated current capacity

• gPV protection characteristics optimized for solar applications

• Compact 22mm width design with DIN rail mounting (EN60715 35mm)

• Dual fuse link compatibility (10×85mm & 14×85mm)

Product Parameters

Model	EKF1-15PV	EKF1-15XPV
Standard	IEC60947-3
Utilization category	DC-PV0
Number of poles	1P (22mm width)
Operating State Indicator	No	Yes
Rated operational voltage (Ue)	1500 VDC
Rated operational current (Ie)	35A
Rated insulation voltage (Ui)	1500V
Rated impulse withstand voltage (Uimp)	8kV
Conventional free air thermal current (Ith)	same as Ie
Conditional Short-circuit Current	50kA
Size of fuse link	10x85mm, 14X85mm
Pollution Degree	3
Degree of Protection	IP20,after installation
Max. tightening Torque	2.5Nm
Max. terminal size for cable	10mm²
Installation	Mounting on 35mm DIN rail
Operating temperature	-5°C ... +40°C
Storage temperature	-25°C ... +55°C
