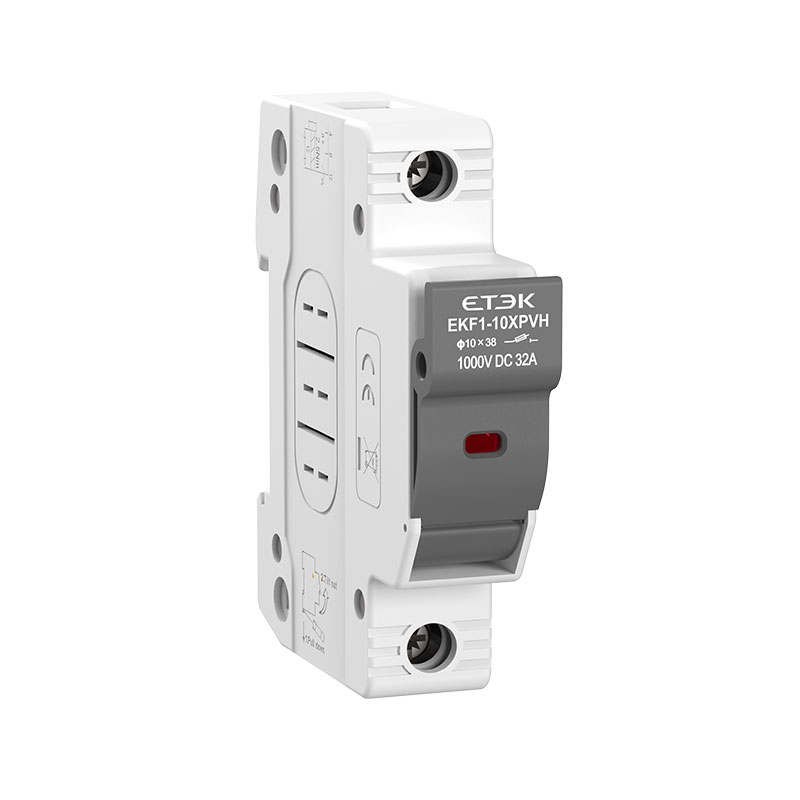

EKF1-10PVH Solar Photovoltaic Fuse Switch Disconnector - 1000VDC 32A with 10×38mm Fuse Link

EKF1-10PVH Solar Photovoltaic Fuse Switch Disconnector - 1000VDC 32A with 10×38mm Fuse Link

Standard: IEC60947-3

Rated current: 32A

Rated voltage: 1000VDC

Number of poles: 1P

Conditional Short-circuit Current: 30kA

Utilization Category: DC-PV0

Ambient air temperature: -5...+40 ºC

Request An Inquiry

Product Introduction

EKF1-10PVH Fuse Switch Disconnector is a premium-grade protection device specifically engineered for photovoltaic solar systems. Designed to meet the demanding requirements of solar installations, this compact disconnector offers exceptional performance and reliability in DC circuit protection applications.

Product Parameters

Model	EKF1-10PVH	EKF1-10XPVH
Standard	IEC60269-6
Utilization category	DC-PV0
Number of poles	1P
Operating State Indicator	No	Yes
Rated operational voltage (Ue)	1000 VDC
Rated operational current (Ie)	32A
Rated insulation voltage (Ui)	1000V
Rated impulse withstand voltage (Uimp)	6kV
Conventional free air thermal current (Ith)	same as Ie
Conditional Short-circuit Current	30kA
Size of fuse link	10x38mm
Pollution Degree	3
Degree of Protection	IP20,after installation
Max. tightening torque	2.5Nm
Max. terminal size for cable	6mm²
Installation	Mounting on 35mm DIN rail
Operating temperature	-5°C ... +40°C
Storage temperature	-25°C ... +55°C
