Current Rating: 50A, 120A, 175A, 350A
Voltage Rating: 600V (AC/DC)
Wire Size: 4 mm²–70 mm²
Safety: Color-Coded Voltage Keying

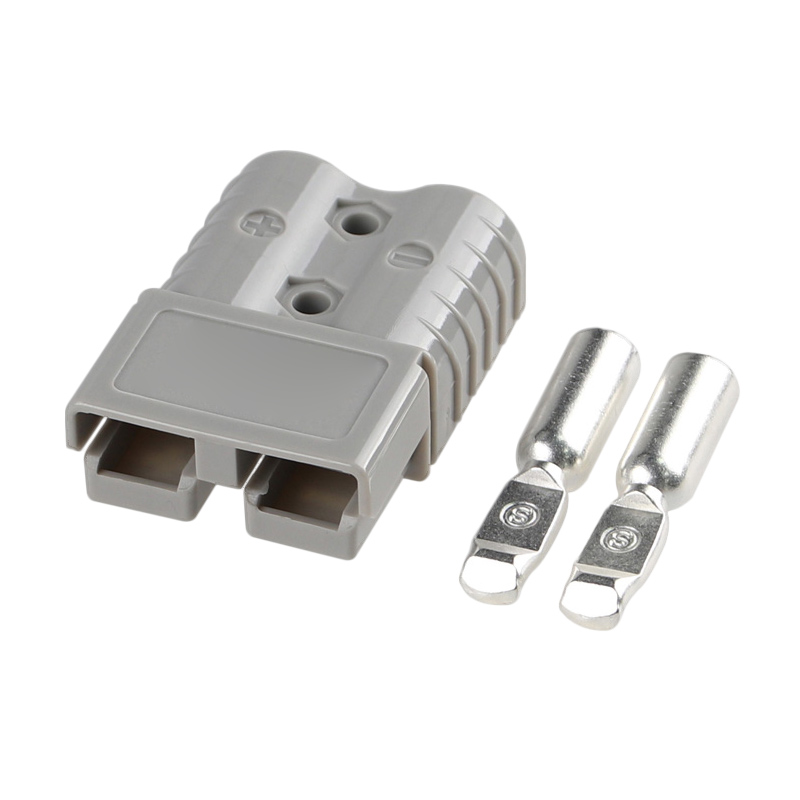

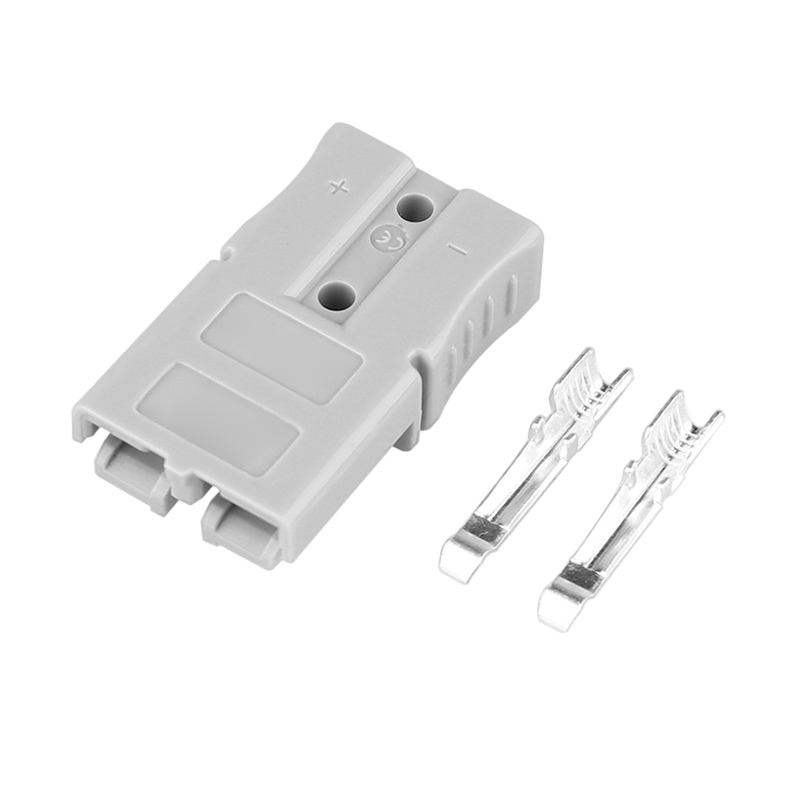

EK2S is a double pole, high current battery connector using a genderless (intermateable) mating design for faster service and simplified parts management. At the same time, keyed and color-coded housings can be standardized across fleets to reduce wrong connections between different systems. Choose by current level, voltage, cable size, and your site’s color/keying strategy.
Genderless Housing:
Mechanically and electrically identical halves mate together. Simply rotate one connector 180 degrees to mate. Simplifies purchasing and field service.

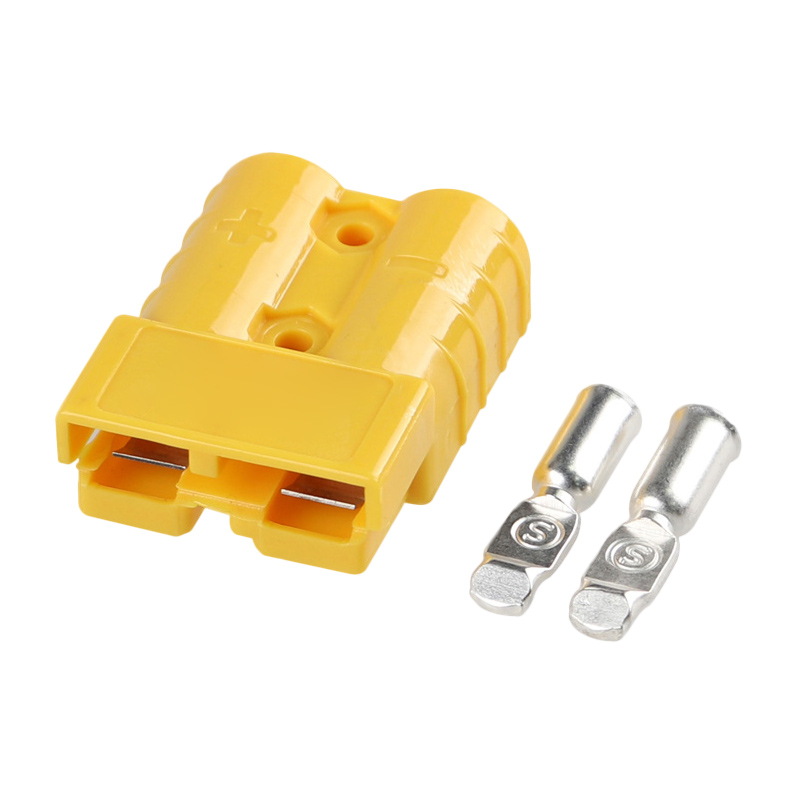

Color-Coded Mechanical Keying:

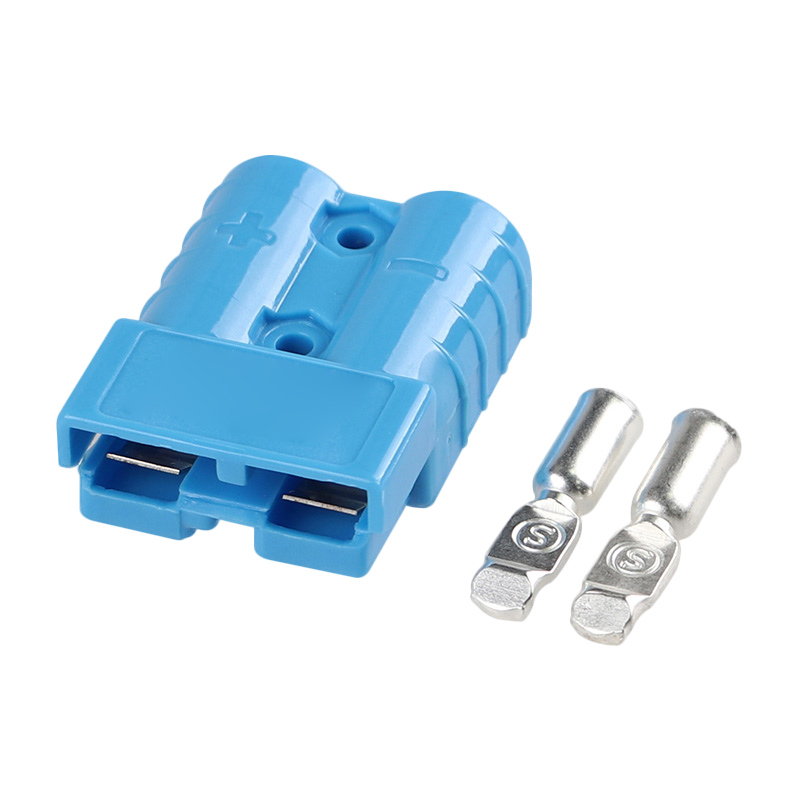

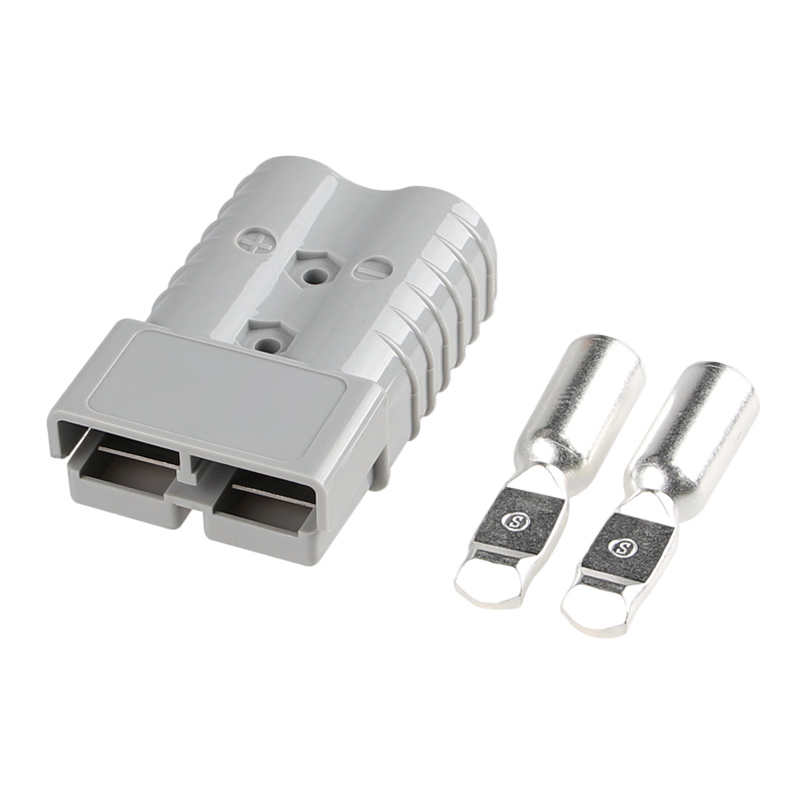

Each color housing has a unique internal key. A Grey housing will only mate with Grey, and Blue with Blue. This safety feature prevents accidental mating of different voltage levels (e.g., plugging a 36V battery into a 48V charger).
Self-Cleaning Contacts:
Stainless steel springs apply robust contact pressure, while the "wiping action" during mating helps clean contact surfaces, maintaining low resistance even in dusty environments.
Rugged Durability:
Impact-resistant polycarbonate housings and robust design withstand the shock, vibration, and rough handling common in forklift and material handling operations.
Multi-Voltage Fleet Charging
Battery-to-charger connections where different voltage systems (24V/48V/80V) must be kept separate through color coding while using the same connector interface.

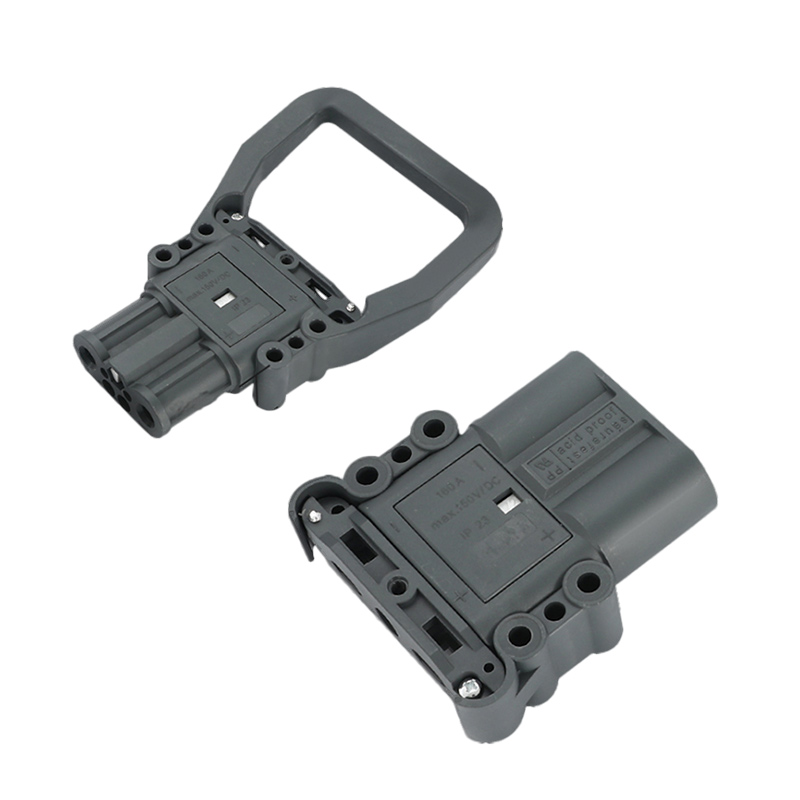

Forklift & Material Handling
Battery swapping and charging operations requiring frequent, reliable connections with mismating prevention across different equipment types.
UPS & Backup Power
DC power connections for uninterruptible power supplies and backup battery systems where service speed and connection reliability are critical.

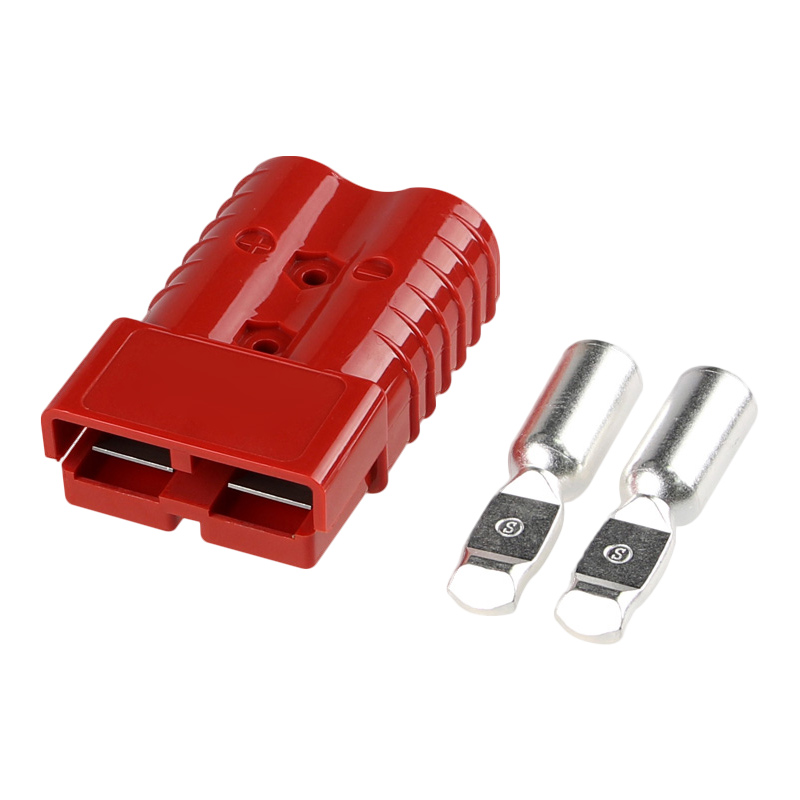

Q: Can I mate a Red EK2S connector with a Grey EK2S connector?
A: No. EK2S housings are mechanically keyed by color. This safety feature prevents cross-mating incompatible voltage systems (e.g., 24V vs 36V).
Q: What tools do I need to crimp EK2S contacts?
A: We recommend using approved hydraulic or pneumatic crimping tools compatible with the specific wire gauge (AWG/mm²) to ensure a high-quality, low-resistance termination.
Q: Is the EK2S compatible with other major brands?
A: The EK2S series is designed to be intermateable with standard multipole connectors of the same series and rating. Please consult our technical team for specific cross-reference verification.
|
Model |
EK2S-40 |
EK2S-50 |
EK2S-120 |
EK1S-175 |
EK2S-350 |
|
Rated current |
40A |
50A |
120A |
175A |
350A |
|
Voltage rating |
600V AC/DC |
||||
|
Poles |
2P |
||||
|
Housing material |
Polycarbonate (PC), UL94 V-0 |
||||
|
Contact material |
Copper, Silver Plated |
||||
|
Operating temp |
-20℃ to +105℃ |
||||
|
Mating Cycles |
> 10,000 (No Load) |
||||
|
Termination Style |
Crimp or Solder |
||||
|
Wire Range |
4~6mm² |
4~12mm² |
10~25mm² |
10~50mm² |
10~70mm² |
