Current Rating: 80A~320A
Voltage Rating: 150V
Wire Size: 16mm²–70mm²
Mounting Type: Chassis Mount

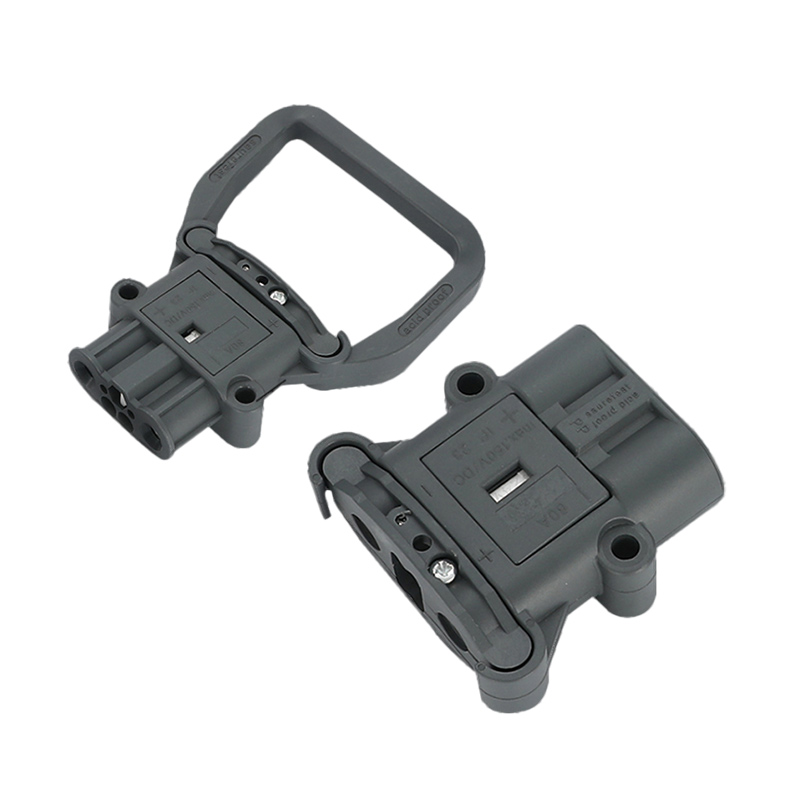

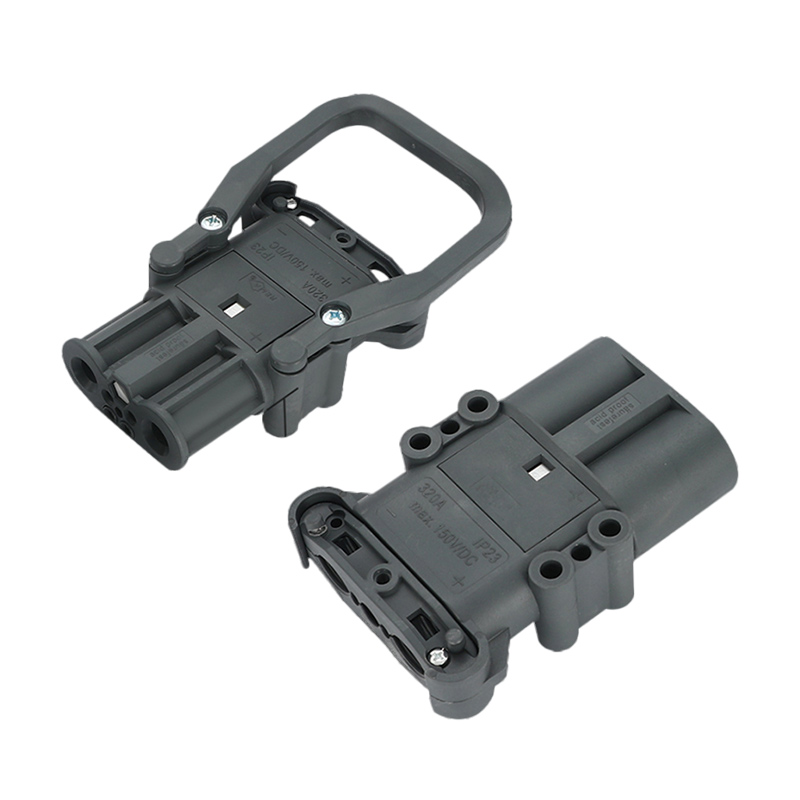

EK4S series forklift battery connectors are designed for high-current DC battery charging and power connections in material handling and industrial equipment. With a flame-retardant housing and silver-plated copper terminals, EK4S supports stable, repeatable mating for service-friendly battery swapping and charging workflows.
Flame-Retardant, Robust Housing
The housing is made from flame-retardant engineering plastic to help withstand stress and pressure in demanding industrial environments. The material is designed to self-extinguish after removal from the ignition source.
Reliable High-Current Terminals
Silver-plated copper terminals support low-loss power transfer and stable contact performance in frequent connect/disconnect operations.
Protective Accessories for Field Use
A protective wire cover and sealing accessories (rubber ring components) are designed for easier installation and added protection against environmental interference such as rain, sand, and dust (protection class IP23).
Forklifts & material handling equipment: battery swapping, charging interfaces, service connections
Charging stations & DC power interfaces: charger-to-battery connections in warehouses and depots
Industrial equipment: high-current DC power supply equipment
Railway/mining: high-current plug-in connections and accessories
Q: What is the EK4S connector used for?
A: EK4S is a high‑current DC battery connector used for forklift battery charging, battery swapping, and industrial DC power connections.
Q: Is EK4S a Euro DIN (DIN‑type) forklift battery connector?
A: Yes. EK4S is a Euro DIN / DIN‑type style connector commonly used on forklift battery and charger interfaces.
Q: Is EK4S waterproof? What is the IP rating?
A: EK4S is rated IP23. It is suitable for typical industrial/warehouse environments, but it is not a fully sealed waterproof connector.
Q: What materials and safety ratings does EK4S have?
A: Silver-plated copper terminals, flame‑retardant PA housing (UL94 V‑0), operating temperature -20°C to 105°C.
|
Model |
EK4S-80 |
EK4S-160 |
EK4S-320 |
|
Rated current |
80A |
160A |
320A |
|
Voltage rating |
150V |
||
|
Poles |
2P |
||
|
Plug type |
Female & Male |
||
|
Housing material |
Flame-retardant PA |
||
|
Terminal material |
Silver-plated copper |
||
|
Flammability |
UL94 V-0 |
||
|
Protection class |
IP23 |
||
|
Operating temp |
-20℃ to +105℃ |
||
|
Mating cycles |
> 10,000 (No Load) |
||
|
Wire range |
16~25mm² |
35~50mm² |
50~70mm² |
