Product Introduction

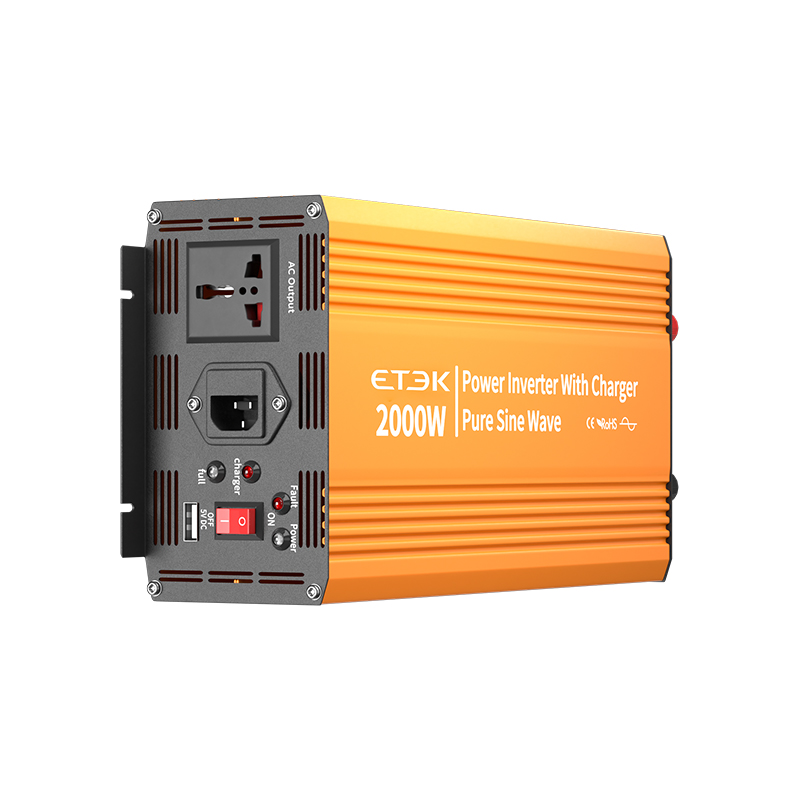

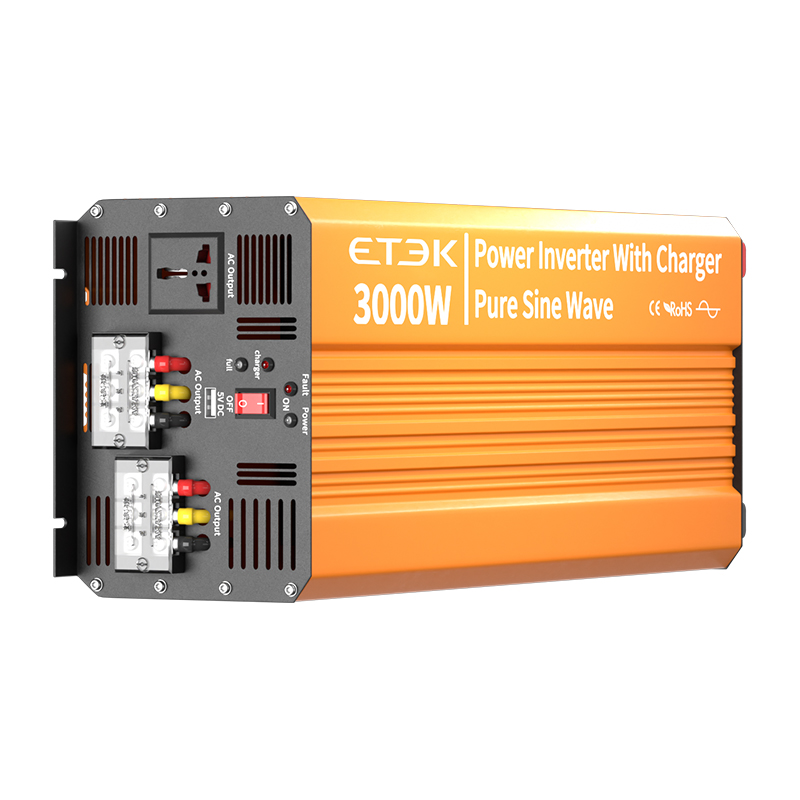

EKPC Pure Sine Wave Power Inverter Charger is an advanced power solution that combines the functionalities of a pure sine wave inverter and a charging system. It prioritizes mains power supply to the load and charges the battery simultaneously. In the event of a mains power outage, it automatically switches to inverter power supply within 10 ms, ensuring uninterrupted power to your devices.

Product Parameters

Rated power	500W/1000W	1500W/2000W/3000W	4000W/5000W
Peak power	1000W/2000W	3000W/4000W/6000W	8000W/10000W
Input voltage	12/24/48VDC
Output voltage	110/220VAC±5%
USB output	5V2A
Frequency	50Hz±3 or 60Hz±3
Output waveform	Pure sine wave
Soft start	yes
Charging current	12V/10A or 24V/5A	12/20A or 24V/10A	24V/20A or 48V/10A
Power supply priority	Priority for AC
Switching time	＜10 ms
DC input range	12V(10-15.5V); 24V(20-31V); 48V(40-61V)
Input undervoltage alarm	12V(10.5V±0.5V); 24V(21V±0.5V); 48V(42V±1V)
Input undervoltage protection	12V(10V±0.5V); 24V(20V±0.5V); 48V(40V±1V)
Input undervoltage recovery	12V(12V±0.5V); 24V(24V±0.5V); 48V(48V±1V)
Input overvoltage protection	12V(15.5V±0.5V); 24V(31V±0.5V); 48V(60V±1V)
Input overvoltage recovery	12V(15V±0.5V); 24V(20V±0.5V); 48V(59V±1V)
Refrigeration method	Intelligent fan
Protection function	Undervoltage,overvoltage, overload, over temperature,short circuit, reverse connection (fuse) protection
Working temperature	-10°C ~ +50°C
