Rated output power: 1kW to 11kW model
Rated output voltage: 220/230/240V
Rated battery voltage: 12/24/48V
MPPT tracking range: 30-430VDC, 90-500VDC, 120-500VDC, (model dependent)
Multiple charging modes: Photovoltaic, mains, PV priority, and hybrid
Multiple communication modes, RS485, Wi-Fi, dry contact
Compatible with lithium-ion and lead-acid batteries
Parallel operation capability for increased power output

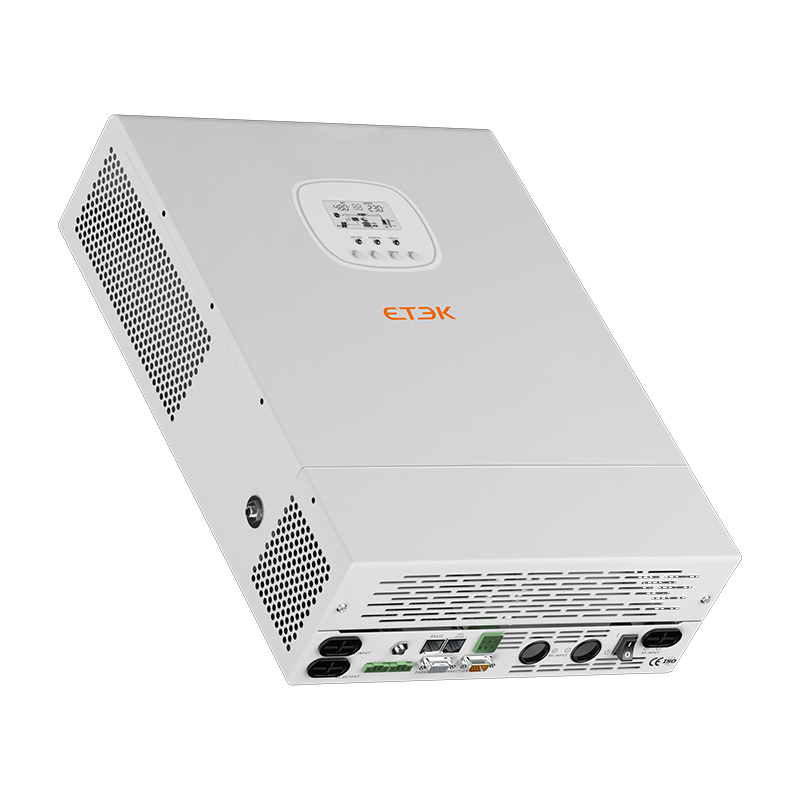

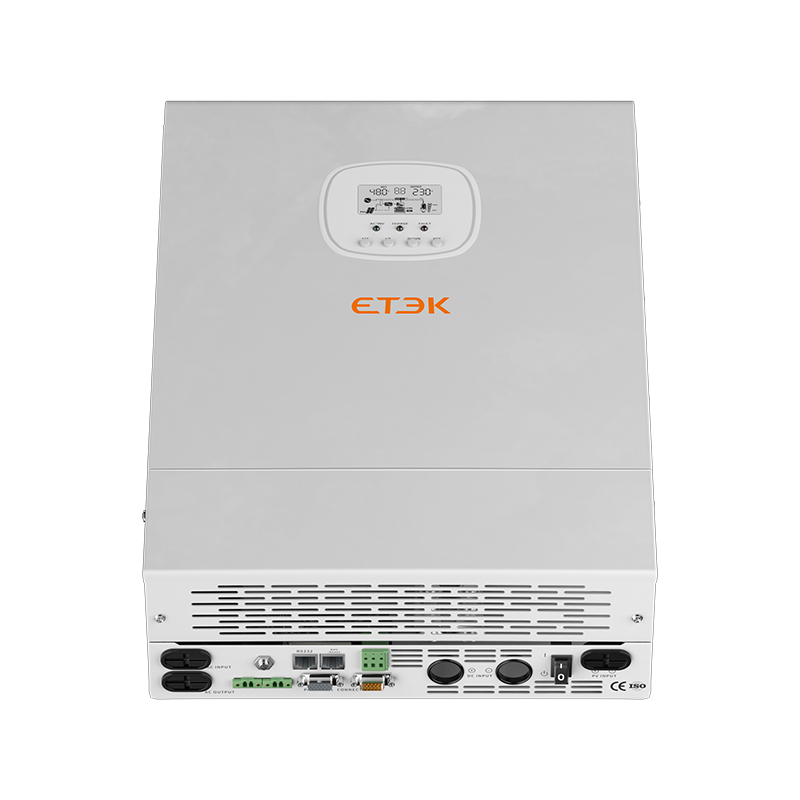

EDPO Off-Grid Hybrid Inverter represents a innovative solution in solar power management, combining photovoltaic and mains charging capabilities with UPS bypass and battery inversion functions. This versatile system features advanced MPPT technology with up to 99.9% efficiency, making it ideal for residential, RV, agricultural, and industrial applications. Available in multiple power ratings from 1kW to 11KW, it offers intelligent work priority adjustment and seamless communication with home lithium batteries.
|
Model |
EDPO-1kW |
EDPO-1.5kW |
EDPO-3kW |
EDPO-P-5.5k |
EDPO-6.2KW |
EDPO-11KW |
|
AC grid input |
||||||
|
Rated input voltage |
220/230/240VAC |
|||||
|
Voltage range |
90-280VAC±3V (household appliance mode), 170-280VAC±3V (UPS mode) |
|||||
|
Frequency |
50/60Hz (adaptable) |
|||||
|
Inverter output |
||||||
|
Rated power |
1kW |
1.5kW |
3kW |
5.5kW |
6.2kW |
11kW |
|
Output voltage |
220/230/240VAC±5% |
|||||
|
Waveform |
Pure sine wave |
|||||
|
Switching time (adjustable) |
Computer equipment 10ms, household appliances 20ms |
|||||
|
Peak power |
2kW |
3kW |
6kW |
11kW |
12.4kW |
22kW |
|
Battery port |
||||||
|
Battery type |
Lithium ion batteries/lead-acid batteries/user-defined |
|||||
|
Rated battery voltage |
12VDC |
24VDC |
24VDC |
48VDC |
48VDC |
48VDC |
|
Battery voltage range |
10~15.6V |
20~31V |
20~31V |
40~60V |
40~60V |
40~60V |
|
PV input |
||||||
|
PV charging method |
MPPT |
|||||
|
PV maximum input power |
2kW |
2kW |
4.2W |
5.5kW |
5.5kW |
2×5.5kW |
|
MPPT tracking range |
30-430VDC |
30-430VDC |
120-500VDC |
120-500VDC |
120-500VDC |
90-500VDC |
|
Maximum PV charging current |
80A |
80A |
100A |
100A |
100A |
150A |
|
Maximum AV charging current |
60A |
60A |
60A |
60A |
60A |
150A |
|
Maximum total charging current |
80A |
80A |
100A |
100A |
100A |
150A |
|
Basic parameters |
||||||
|
Communication |
USB/RS485 (optional WiFi)/dry connector |
|||||
|
Parallel interface |
/ |
Parallel function (optional) |
||||
