EKDB10 Series IP65 Plastic Waterproof Distribution Box for Industrial & Commercial Applications

Standard:IEC 60529,IEC 62262:2021,EC 60695-2-10:2013.

Available Models: 4/6/9/13/18/26/39 (with or without terminals)

Neutral & Ground Bar Configuration: 3-24 holes depending on model

Layer Options: Single, Double, or Triple depending on model

Inquiry Now
Description
Product Parameters
Product Introduction

EKDB10 Series IP65 Waterproof Distribution Box is an advanced electrical protection solution engineered for demanding industrial, commercial, photovoltaic, and EV charging applications. Constructed from premium PC engineering plastics, these distribution boxes deliver exceptional mechanical strength and superior weather resistance in all environments.



Features & Benefits



Flame-Retardant Performance: Successfully passed glow wire flammability test at 960±15°C

Security-Enhanced Design: Features reserved padlock positions to prevent unauthorized access and tampering

Premium Construction: High-quality PC material delivers excellent toughness, high strength, and superior impact resistance for harsh environmental conditions

Integrated Copper Components: High-quality full copper terminals are pre-integrated for convenient and reliable wiring

Versatile Configuration Options: Available in 7 different sizes with single, double, or triple layer configurations

Application Versatility: Optimized for photovoltaic systems and EV charging infrastructure



The EKDB10 Series represents the ideal choice for electrical system integrators, industrial facility managers, and renewable energy professionals seeking durable, reliable protection solutions for critical electrical components.

Product Parameters

Model

Ways

Layers

Terminal

Neutral Bar Holes

Ground Bar Holes

Dimensions (mm)

EKDB10-4(T)

4

Single

Y/N

3

3

128x200x103.5

EKDB10-6(T)

6

Single

Y/N

5

5

164x200x103.5

EKDB10-9(T)

9

Single

Y/N

5

5

218x200x103.5

EKDB10-13(T)

13

Single

Y/N

8

8

296x230x121.5

EKDB10-18(T)

18

Single

Y/N

8

8

380x230x121.5

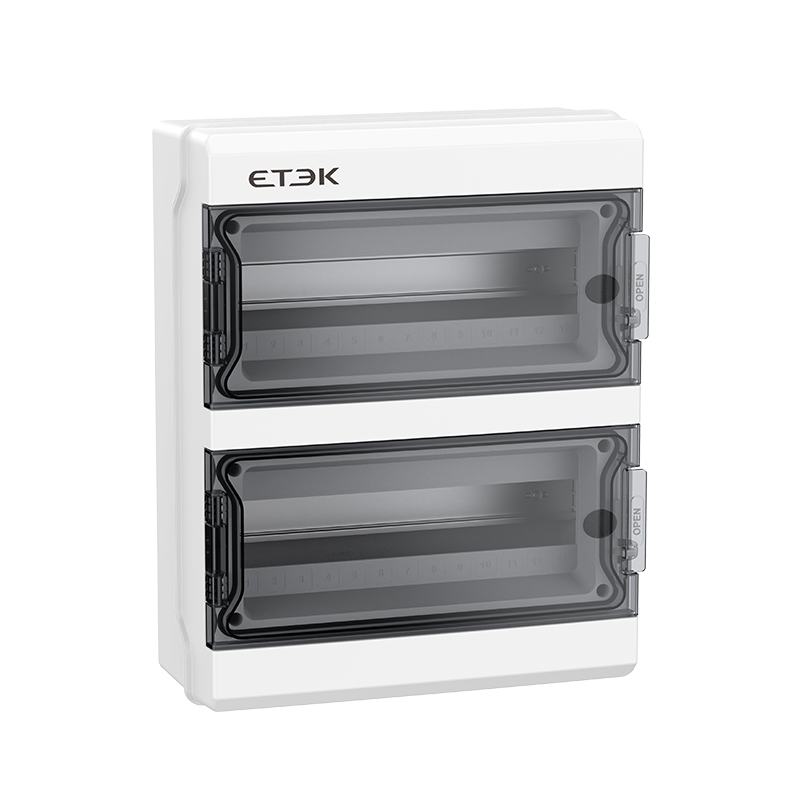

EKDB10-26(T)

26

Double

Y/N

2x8

2x8

296.5x390.5x131.5

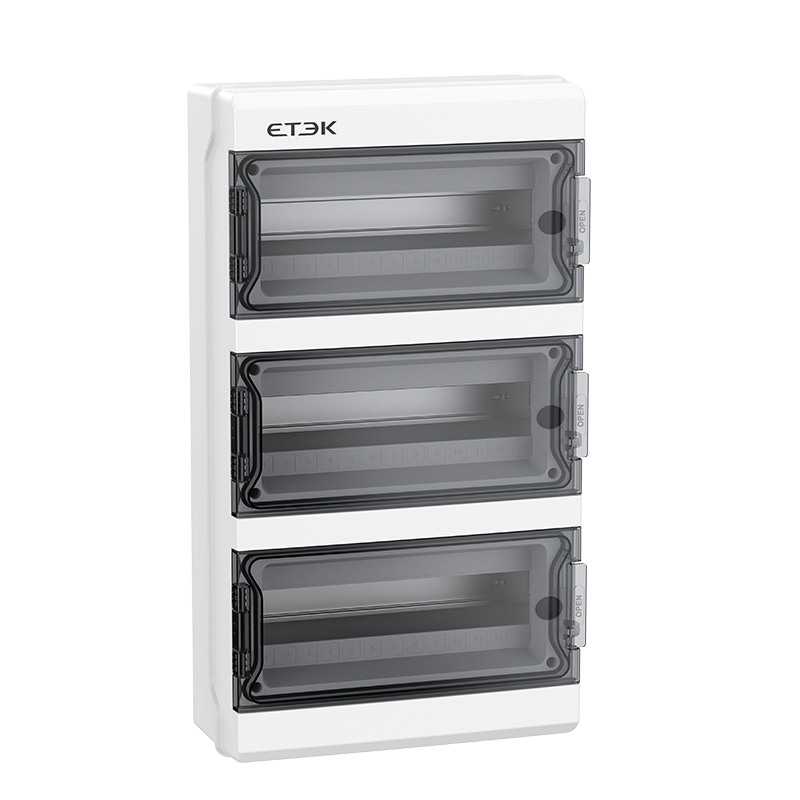

EKDB10-39(T)

39

Triple

Y/N

3x8

3x8

296.6x550.6x131.5
