4 Input 1 Output 1000V 4-String PV Combiner Box with MCB Protection for High-Current Applications

Max. DC Voltage: 1000V

Input/Output Strings: 4-in / 1-out

Max. Input Current (per string): 15A

Max. Output Current: 60A

Surge Protection: Type 2, 40kA

DC Fuse: 10x38mm, 15A

DC Protection Switch: DC MCB, 1000V/63A

Enclosure: PC Material type & IP65

Inquiry Now
Description
Product Parameters
Product Introduction

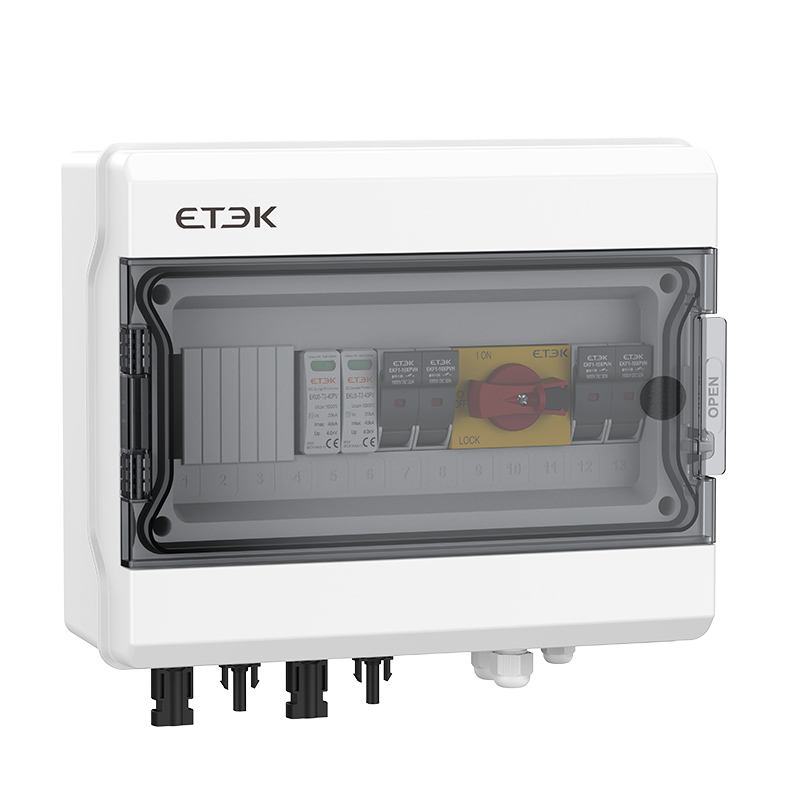

EKDBS-PV4/1-FBS-1000 is a heavy-duty 1000V DC combiner box designed for higher current applications with 4 input strings. This professional-grade unit features advanced MCB protection instead of standard DC isolators, making it ideal for large commercial and utility-scale solar installations where higher output currents are required.



Applications:

EKDBS-PV4/1-FBS-1000 is specifically designed for larger commercial and utility-scale solar installations where multiple high-current strings need to be combined, such as:

• Large commercial rooftop solar arrays

• Ground-mounted commercial solar fields

• Solar carports and canopies

• Industrial solar power systems

• Small utility-scale solar installations

• Applications requiring higher output currents up to 63A

Product Parameters

Model

EKDBS-PV4/1-FBS-1000

Number of input strings

4

Number of output strings

1

Max. DC voltage

1000V

Max. input current per string

15A

Max. output current

60A

Surge Protection

Type

Type 2

Max. operation voltage (Ucpv)

1000V

Max. discharge current (Imax)

40kA

Voltage protection level

4kV

Poles

2

Design features

Plug-in module

Standard

IEC/EN 61643-31

DC Fuse

Rated operation voltage(Ue)

1000V

Rated current (Ie)(Changeable)

15A

Type of fuses

10x38mm,30kA

Standard

IEC 60947-3 & IEC 60269-6

DC Protection Switch

DC MCB

Rated insulation voltage (Ui)

1000V

Rated operating voltage (Ue)

1000V

Rated current(Ie)

63A

Poles

4P

Standard

IEC/EN 60947-2

Enclosure

Material type

PC

Degree of Protection

IP65

Impact protection level

IK08

Enclosure size

380x230x121.5mm

(18 ways)

Input or output connector

Waterproof gland (default), MC4 connector (optional)

Environment

Operating Temperature

-25℃ to +55℃

Cooling way

Natural cooling

Humidity

0~95%

Altitude

2000m

Installation

Wall Mounting
