Max. DC Voltage: 1000V
Input/Output Strings: 2-in / 2-out
Max. Input Current (per string): 15A(Changeable)
Max. Output Current: 32A
Surge Protection: Type 2, 40kA
DC Fuse: 10x38mm, 15A
DC Protection Switch: DC Isolator, 1000V/32A
Enclosure: PC Material type & IP65

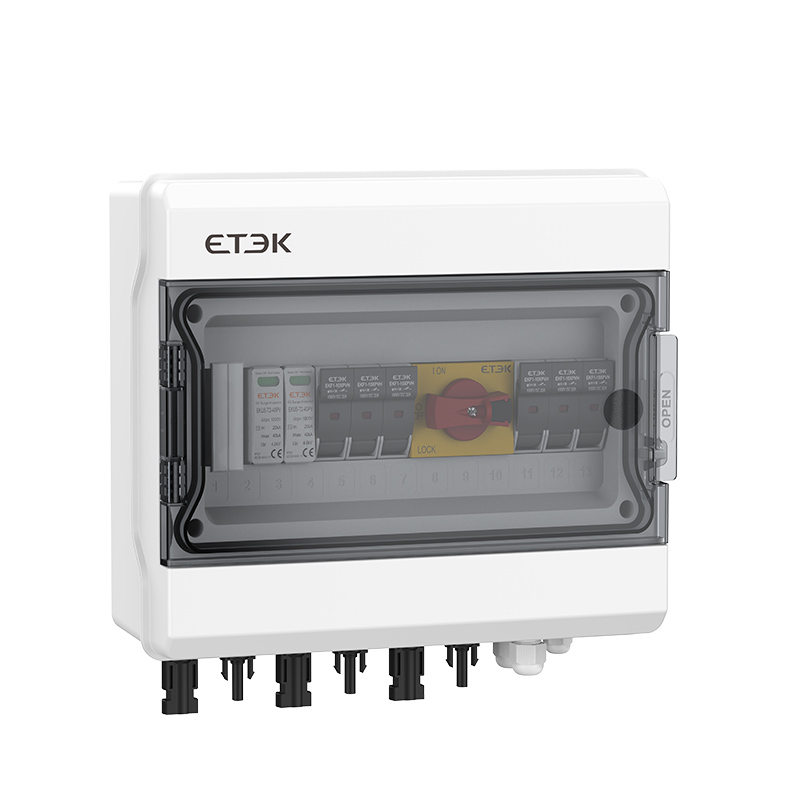

The EKDBS-PV2/2-IFS-1000 is a versatile 1000V DC combiner box engineered for sophisticated commercial and industrial solar photovoltaic systems requiring dual input and dual output configurations. This unit offers advanced circuit protection and operational flexibility within a robust IP65-rated enclosure.
Applications:
EKDBS-PV2/2-IFS-1000 is particularly suited for specialized solar installations requiring separate input and output circuits, such as:
• Systems feeding two different inverters or loads
• Installations with separate battery storage and grid-tied connections
• Solar arrays with different orientations requiring independent management
• Commercial applications with zone-based power distribution requirements
• Bifacial module installations with separate circuit management
|
Model |
EKDBS-PV2/2-FBS-1000 |
|
Number of input strings |
2 |
|
Number of output strings |
2 |
|
Max. DC voltage |
1000V |
|
Max. input current per string |
15A(Changeable) |
|
Max. output current |
32A |
|
Surge Protection |
|
|
Type |
Type 2 |
|
Max. operation voltage (Ucpv) |
1000V |
|
Max. discharge current (Imax) |
40kA |
|
Voltage protection level |
4kV |
|
Poles |
2 |
|
Design features |
Plug-in module |
|
Standard |
IEC/EN 61643-31 |
|
DC Fuse |
|
|
Rated operation voltage(Ue) |
1000V |
|
Rated current (Ie)(Changeable) |
15A |
|
Type of fuses |
10x38mm,30kA |
|
Standard |
IEC 60947-3 & IEC 60269-6 |
|
DC Protection Switch |
DC Isolator Switch |
|
Rated insulation voltage (Ui) |
1500V |
|
Rated operating voltage (Ue) |
1000V |
|
Rated current(Ie) |
32A |
|
Poles |
4P |
|
Standard |
IEC/EN 60947-3 |
|
Enclosure |
|
|
Material type |
PC |
|
Degree of Protection |
IP65 |
|
Impact protection level |
IK08 |
|
Enclosure size |
380x230x121.5mm (18 ways) |
|
Input or output connector |
Waterproof gland (default), MC4 connector (optional) |
|
Environment |
|
|
Operating Temperature |
-25℃ to +55℃ |
|
Cooling way |
Natural cooling |
|
Humidity |
0~95% |
|
Altitude |
2000m |
|
Installation |
Wall Mounting |
