Standard:EN 60670-1, EN 60670-24
Available Module: 4/8/12/18/24/36
IP Rating: IP65
Ambient Temperature: -5°C to +40°C
Material Temp. Resistance: -25°C to +80°C
EKHA Series is engineered for environments where enclosure protection is critical. It effectively protects internal electrical components from dust, water jets, and external impact while maintaining stable performance in a wide range of operating conditions.

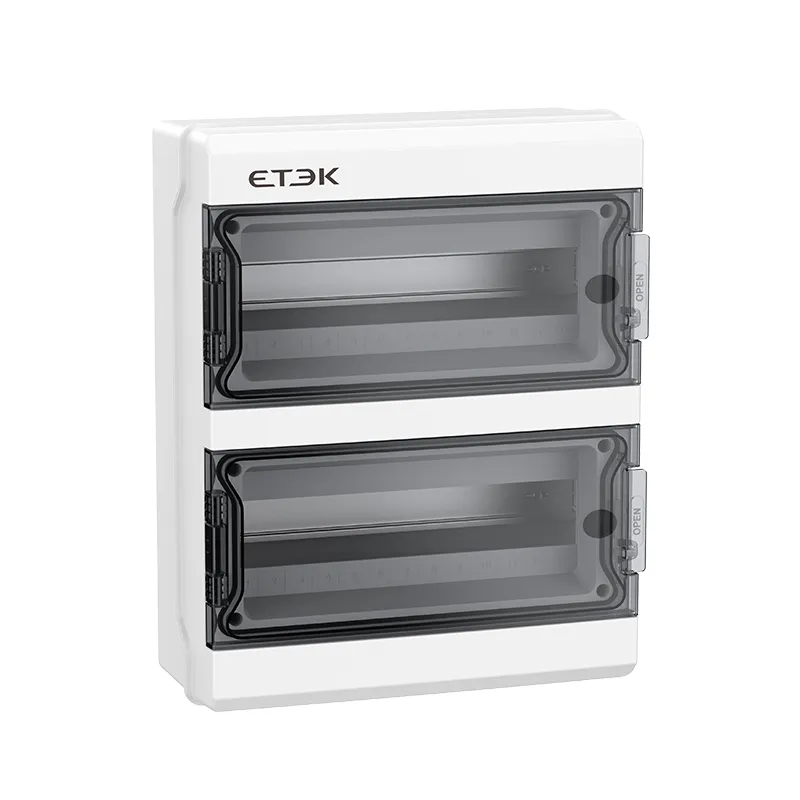

Designed with a transparent lid for easy inspection and a robust ABS/PC housing, this enclosure is suitable for projects that require a dependable IP65 electrical distribution box for both outdoor and indoor use. Available in configurations from 4 to 36 modules, its practical design makes it a strong choice for contractors, panel builders, and OEM customers.
Key Features
| Color | RAL 7035 |
| Cover Type | Transparent lid |
| Module Capacity | 4–36 modules |
| Rows | 1–3 |
| IP Rating | IP65 |
| IK Rating | IK09 |
| Application | Indoor and outdoor use |
| Ambient Temperature | -5°C to +40°C |
| Relative Humidity | Up to 100% at 25°C |
| Rated Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Current (In) | 100 A |
| Standards | EN 60670-1, EN 60670-24 |
| Material | ABS/PC |
| Material Temp. Resistance | -25°C to +80°C |
| Material Properties | Halogen-free, silicone-free |
| Model | Dimensions (L × W × H) mm | Suitable Applications |
|---|---|---|
| EKHA-4 | 140 × 210 × 100 | Compact indoor/outdoor wiring, small control switches. |
| EKHA-8 | 215 × 210 × 100 | Standard residential or small commercial distribution. |
| EKHA-12 | 300 × 260 × 140 | Medium-scale industrial control panels. |
| EKHA-18 | 410 × 285 × 140 | Multi-circuit distribution for workshops and factories. |
| EKHA-24 | 298 × 420 × 140 | Complex electrical distribution requiring more depth. |
| EKHA-36 | 572.5 × 318 × 149.5 | Large industrial projects and main distribution centers. |
