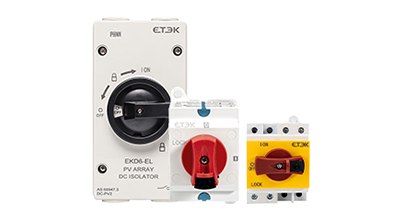

A DC isolator switch, also known as a DC disconnect switch, is a critical component in direct current (DC) electrical systems designed to safely and permanently separate power sources from loads. Unlike AC (alternating current) systems, DC circuits lack a natural zero-crossing point, making arc extinction more challenging. DC isolators address this by providing a visible and reliable break in the circuit, ensuring personnel safety during maintenance, fault isolation, or emergency shutdowns. These switches are widely used in high-voltage DC applications such as solar photovoltaic (PV) installations, electric vehicle (EV) charging stations, and industrial power distribution.
1. High Voltage and Current Ratings
DC isolators are engineered to handle extreme voltages and currents, with common ratings ranging from 300V to 1500V DC and currents up to 1600A . For example, the LE TOP DC isolator switches comply with IEC 60947-3 standards and support load breaking under DC-PV2, DC-PV1, and DC-21B conditions, allowing safe operation even when the system is active.
2. Arc Extinction Technology
The absence of zero-crossing in DC circuits necessitates specialized arc suppression mechanisms. Modern DC isolators employ innovative designs such as gas-blast and magnetic blowout techniques to quench arcs rapidly.
3. Safety Interlocks and Environmental Sealing
To prevent accidental reconnection, DC isolators often feature lockable handles that secure the "off" position. Additionally, they are housed in robust enclosures with IP66/IP67 ratings, protecting against dust, water ingress, and UV radiation—a critical feature for outdoor applications like solar farms.
4. Visible Break Indication
A key safety feature is the visual confirmation of the disconnected state. This allows technicians to verify that the circuit is de-energized before working on it, reducing the risk of electrical shock.
5. Modular Design and Flexibility
DC isolators come in various configurations to suit different installation needs. For example, DIN rail-mounted models (e.g., LE TOP’s L1 and L2 series) enable easy integration into distribution cabinets, while pre-wired units with MC4 connectors simplify rapid deployment in solar arrays.
1. Solar PV Systems
DC Isolators Switch are essential in solar installations to disconnect PV strings or inverters during maintenance or emergencies. They ensure that panels remain isolated even when exposed to sunlight, preventing backfeeding. The LE TOP DC isolators, for instance, are specifically designed for solar applications, offering IP66 protection and compliance with international standards .
2. Electric Vehicle (EV) Charging Infrastructure
In DC fast-charging stations, isolators are used to disconnect the power supply from the charging cables, ensuring safety during connector removal or equipment servicing. Models like the BYT-32M1, with MC4 connectors and 1200V DC capability, are ideal for such high-power environments.
3. Industrial and Utility Systems
DC isolators play a vital role in industrial machinery, data centers, and utility grids. For example, the NHM5NEDC series from Chint Electric supports DC1500V and is used in new energy inverter and converter applications, ensuring reliable isolation in harsh conditions.
4. Battery Energy Storage Systems (BESS)
In BESS, DC isolators separate battery banks from inverters or grid connections, facilitating safe battery replacement or system upgrades. Advanced designs also integrate with battery management systems (BMS) to monitor and control energy flow.
5. Marine and Aerospace
These switches are used in ships and aircraft to isolate DC power systems, ensuring safety in confined spaces where electrical faults could lead to catastrophic failures.
DC isolator switches are indispensable for maintaining safety and reliability in high-voltage DC systems. Their ability to handle extreme conditions, suppress arcs, and provide visible isolation makes them critical in renewable energy, transportation, and industrial sectors. As DC applications continue to grow—particularly in solar and EV infrastructure—innovations in arc extinction technology and modular design will further enhance their performance and versatility. By adhering to rigorous standards like IEC 60947-3, DC isolators ensure that modern electrical systems operate efficiently while safeguarding lives and equipment.
