How to choose suitable electrical protection devices?

Ensuring the safety, reliability, and longevity of an electrical system hinges critically on selecting the right protection devices. These components act as the system's guardians, detecting abnormal conditions like overloads, short circuits, and ground faults, and swiftly isolating the affected section to prevent damage to equipment, wiring, and, most importantly, people. Choosing the correct devices requires a systematic approach. Here’s a breakdown of the key steps:

1. Identify the Electrical System and Potential Hazards​

Before choosing protection devices, a thorough analysis of the electrical system is essential.

Key factors to consider include:

Voltage and Current Ratings: The protection device must handle the system’s voltage and current levels.

Type of Load: Different loads (e.g., motors, lighting, HVAC systems) have unique characteristics and protection needs.

Fault Levels: Determine the maximum short-circuit current the system may encounter.

System Configuration: Consider whether it is single-phase or three-phase, grounded or ungrounded, etc.

Electrical systems face risks such as:

Overcurrent: Excessive current from short circuits or overloads.

Overvoltage: Voltage spikes caused by lightning or switching surges.

Undervoltage: Low voltage conditions that can damage equipment.

Ground Faults: Current leakage to the ground, posing electric shock risks.

Arc Faults: Dangerous arcing that may trigger fires.

Understanding these system attributes and hazards lays the foundation for selecting appropriate protection devices.

2. Understand Protective Device Types

Various protection devices are designed to address specific risks:

1. Circuit Breakers: Automatically interrupt current during overloads or short circuits. They come in thermal, magnetic, or thermal-magnetic types. Selection depends on matching the breaker’s current rating and interrupting capacity to system requirements.

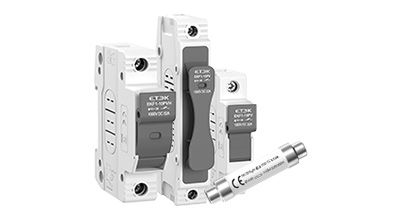

2. Fuse Links: Sacrificial devices that melt to break the circuit during overcurrent. Types include fast-acting, time-delay, or high-breaking capacity fuses. Choose based on current rating, voltage rating, and breaking capacity.

3. Residual Current Devices (RCDs)/Ground Fault Circuit Interrupters (GFCIs): Detect ground faults and disconnect the circuit to prevent electric shocks. Selection criteria include sensitivity (typically 30mA for personnel protection) and response time.

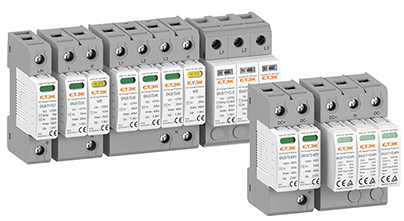

4. Surge Protection Devices (SPDs): Protect against voltage spikes from lightning or switching surges. Key factors are voltage rating, energy absorption capacity, and response time.

5. Arc Fault Circuit Interrupters (AFCIs): Detect and interrupt arc faults to prevent fires. Selection depends on compatibility with load type and system configuration.

6. Undervoltage and Overvoltage Relays: Monitor voltage levels and disconnect the circuit if thresholds are exceeded, with selection based on setpoints for voltage conditions.

3. Select Devices Based on System Requirements

After understanding the system and device types, select devices that align with specific system needs:

For overcurrent protection, match circuit breakers’ current ratings and interrupting capacity to the system’s maximum current and short-circuit levels. For fuses, ensure their current, voltage, and breaking capacity match system parameters.

For ground fault protection, RCDs/GFCI sensitivity (e.g., 30mA) should suit the application—30mA is ideal for personnel safety.

For surge protection, SPDs must handle the system’s voltage (e.g., ~275V) and absorb sufficient energy (e.g., 40kA) to counter spikes.

For arc faults, AFCIs must be compatible with the load type (e.g., lighting vs. motors) and system configuration (single-phase or three-phase).

4. Consider Compatibility and Standards

Compatibility ensures devices work seamlessly within the system. For example, a circuit breaker’s interrupting capacity must exceed the system’s short-circuit current to avoid failure during faults.

Additionally, compliance with industry standards and local regulations is non-negotiable:

IEC (International Electrotechnical Commission): Standards like IEC 60898 for circuit breakers and IEC 61009 for RCDs.

NEC (National Electrical Code): Provides guidelines for electrical installations in the U.S.

UL (Underwriters Laboratories): Certification ensures safety and performance.

Always verify that chosen devices meet the required standards for the region and application.
