Standard: IEC61008-1
RCD Type: AC, A
Rated current: 16~100A
Rated voltage: 230/400V~240/415V
Poles: 2P(1P+N), 4P(3P+N), N Pole on left
Rated sensitivity: 30mA, 100mA, 300mA
Rated short-circuit breaking capacity: 6kA, 10kA
Ambient air temperature: -25...+40ºC
Connection: Bi-Directional

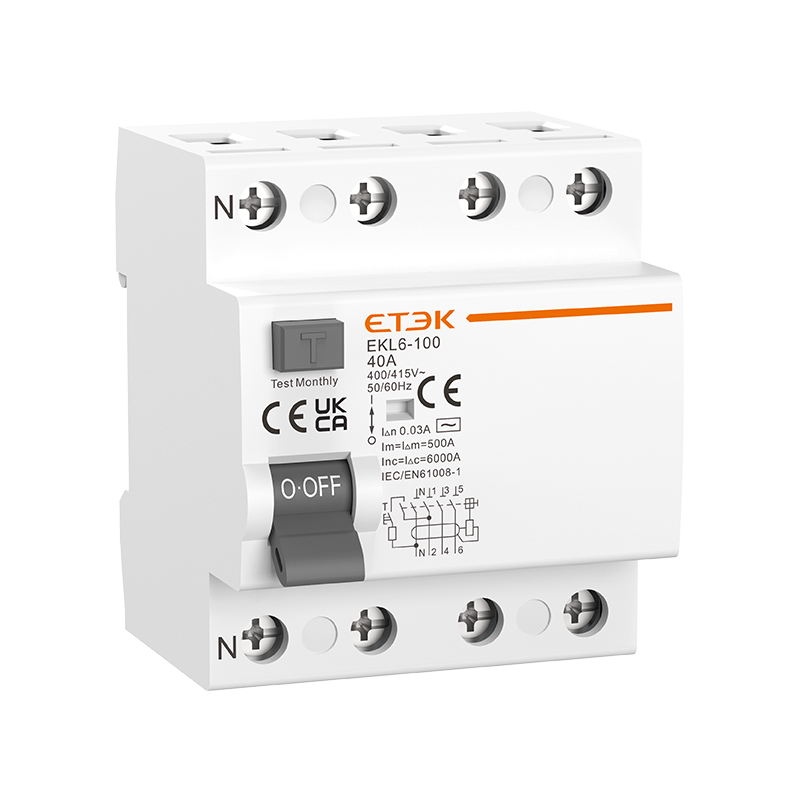

EKL6-100 Magnetic-Type RCCB is engineered for robust electrical safety in demanding environments. As a magnetic-operated residual current circuit breaker, it delivers reliable leakage protection up to 100A while complying with IEC61008-1 standards. Designed for industrial and commercial installations, this RCCB features a unique magnetic tripping mechanism that ensures stable operation even in electrically noisy environments.
Applications
• Manufacturing Plants: Protect CNC machines and production lines
• Commercial Complexes: Ensure safety in shopping malls and office buildings
• HVAC Systems: Secure high-capacity heating/cooling installations
• Data Centers: Guard critical server infrastructure
• Water Treatment Facilities: Reliable operation in humid environments
• Retail Lighting Systems: Protect high-current LED installations
Why Choose EKL6-100 RCCB?
• High Performance: Designed for demanding industrial and commercial applications with a current capacity of up to 100A.
• Global Standards Compliance: Certified to IEC 61008-1, ensuring reliable and safe operation worldwide.
• Flexible Installation: Supports top and bottom connections for easy integration into existing systems.
• Versatile Protection: Offers multiple sensitivity options to meet diverse safety requirements.
• Durable Design: Operates reliably in a wide temperature range, making it suitable for harsh environments.
|
Standard |
IEC/EN61008-1 |
|
Protection |
Ground fault |
|
Type of trip |
Electro-magnetic |
|
Residual current type |
AC,A |
|
No.of poles |
2P(1P+N), 4P(3P+N),N Pole on left |
|
Rated voltage (Ue) |
1P+N: 230/240V~, 3P+N: 400/415V~ |
|
Rated current (In) |
16,25,32,40,63,80,100A |
|
Rated sensitivity currents(I△n) |
30,100,300mA |
|
Residual current off-time under (IΔn) |
≤0.1s |
|
Rated residual making and breaking capacity (IΔm) |
500A(In≤50A),10In (In>50A) |
|
Rated frequency |
50/60Hz |
|
Rated conditional short-circuit current (Inc) |
EKL6-100:6kA, EKL6-100H:10kA |
|
Rated impulse withstand voltage (Uimp) (1.2/50μs) |
4kV |
|
Dielectric test voltage |
2kV (50/60Hz, 1 min.) |
|
Electrical life |
2,000 Cycles |
|
Mechanical life |
4,000 Cycles |
|
Contact position indicator |
green OFF / red ON |
|
Ground fault indicator |
White: Normal, Red: Leakage fault |
|
Protection degree |
IP20 |
|
Ambient temperature |
-25℃ to +40℃, Max.95% humidity |
|
Terminal connection type |
Cable/Pin-type busbar/Fork-type busbar |
|
Max. terminal size for cable |
35mm² |
|
Max. tightening torque |
2.5Nm |
|
Installation |
Mounting on 35mm DIN rail |
|
Incoming method |
Bi-Directional |
