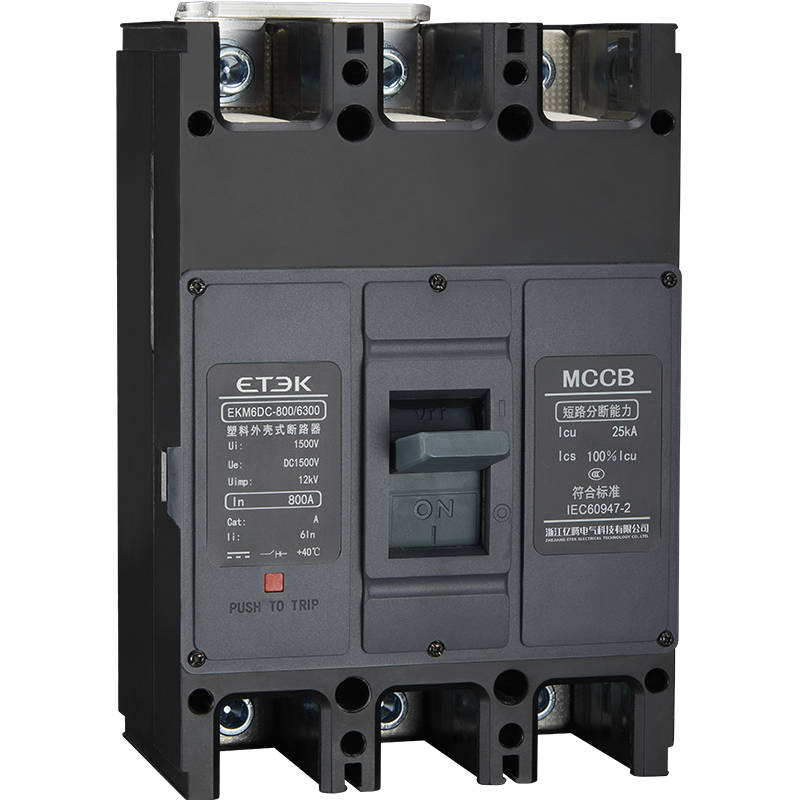

EKM6DC-800 High Capacity DC Circuit Breaker (630A-800A) - Enterprise Protection Solution

Standard: IEC60947-2

Poles: 2P/3P

Frame Current: 800A

Rated Current: 630,700,800A

Rated voltage: DC250V,DC500V,DC750V,DC1000V,DC1500V

Rated insulation voltage: 1500V

Rated impulse withstand voltage: 12kV

Trip unit technology: Thermal-magnetic

Ambient Temperature: -25...+50 ºC

Application: photovoltaic / UPS / battery / data center etc.

Inquiry Now

Product Introduction

EKM6DC-800 represents the pinnacle of DC protection technology, designed for the most demanding applications. With superior breaking capacity and comprehensive protection features, it's the ultimate solution for utility-scale solar farms, large industrial complexes, and critical power infrastructure.

Product Parameters

Model			EKM6DC-800
Ampere frame (Inm)			800A
Rated current (In)			630,700,800A
Rated impulse withstand voltage (Uimp)			12kV
Rated operational voltage (Ue)		2P	250,500,750,1000,1500 VDC
		3P	1000,1500 VDC
Rated ultimate short-circuit Breaking capacity (Icu) kA	2P	DC250V	25
		DC500V	25
		DC750V	15
		DC1000V	15
		DC1250V	/
		DC1500V	10
	3P	DC1000V	30
		DC1500V	25
Rated service short-circuit breaking capacity (Ics) kA			100% Icu
Isolation function			Available
Utilization category			Cat.A
Type of trip unit			Thermal-Magnetic
Mechanical life (Times)			15000
Electrical life (Times)			800
Arcing distance (mm)			≤100

Recommended Products

EKL19-40B Type B RCBO, 6-40A Selectable with B & C Tripping Characteristics, Residual & Overcurrent Protection

EKL19-40B Type B RCBO (6A-40A) offers superior protection against both AC and DC residual currents with B & C tripping curves. Ideal for EV charging, solar systems and advanced applications requiring DC leakage protection.

ETL3-63B B Type RCBO Advanced Residual Current Circuit Breaker with Overload Protection

ETL3-63B B Type RCBO, a high-performance residual current circuit breaker with overload protection. Featuring 30mA sensitivity, B and C tripping curves, and 10kA breaking capacity for AC, DC, and high-frequency leakage detection. Ideal for EV chargers, solar panels, and residential/commercial use. Ensure electrical safety with bidirectional wiring and advanced fault indicators.

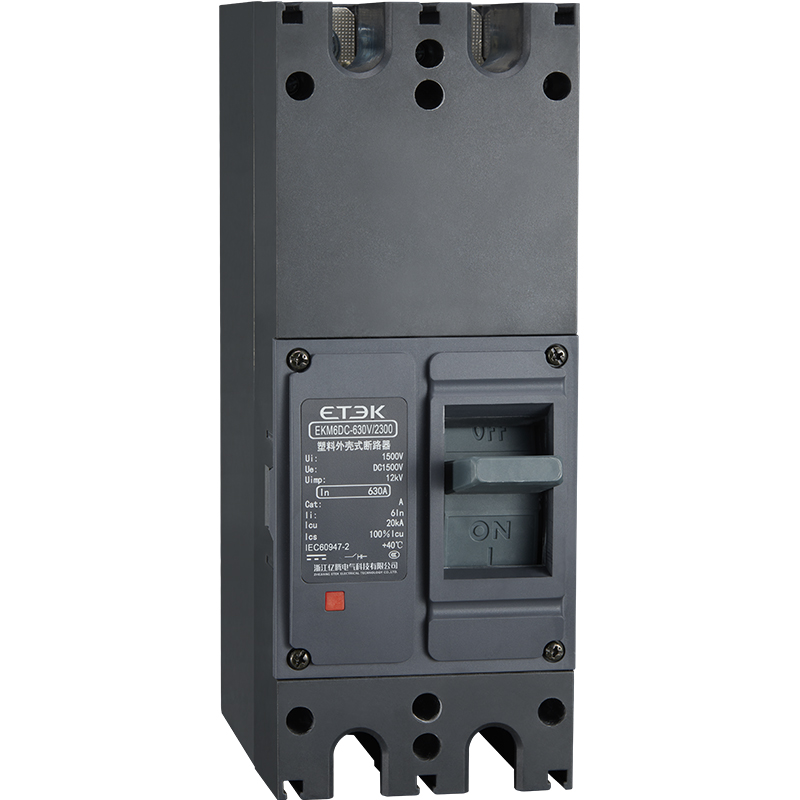

EKM6DC-630 1500V DC Molded Case Circuit Breaker (400A-630A) for Renewable Energy Systems

EKM6DC-630 DC Molded Case Circuit Breaker is a high-capacity protection device designed for DC electrical systems. With a rated current range of 400A to 630A and a voltage capacity of up to 1500V, it

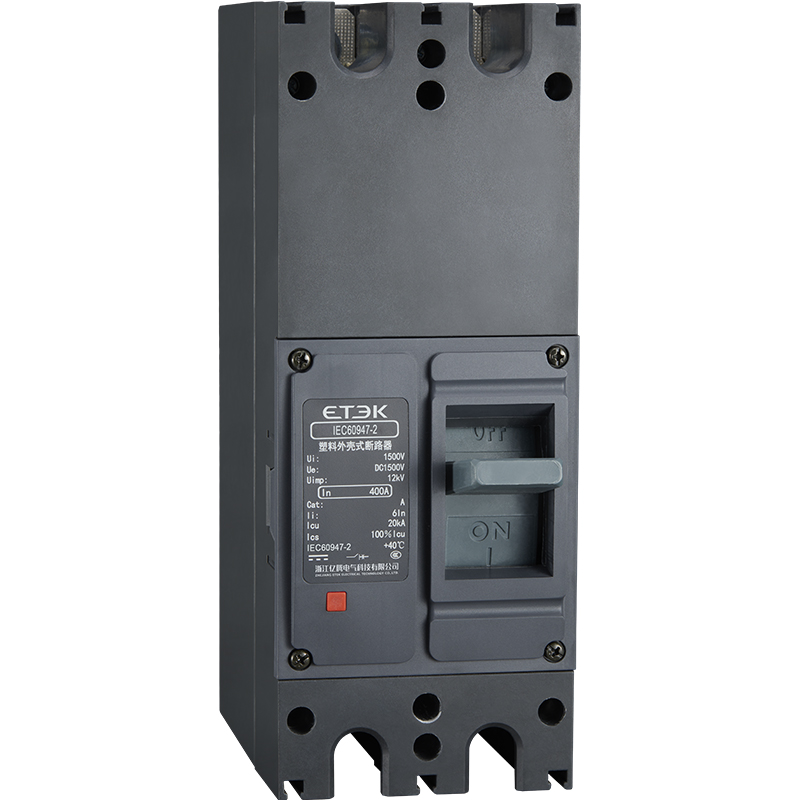

EKM6DC-400 1500V DC Molded Case Circuit Breaker (250A-400A) for Solar and Battery Systems
