Standard: IEC60898-1&IEC60947-2
Type of trip: Thermo-magnetic
Rated current: 1~63A
Rated voltage: 230/400V~240/415V
Number of poles: 1P,2P,3P,4P
Rated short-circuit breaking capacity: 10kA
Tripping curve: B, C, D
Ambient air temperature: -25...+40 ºC
Connection: From top and bottom

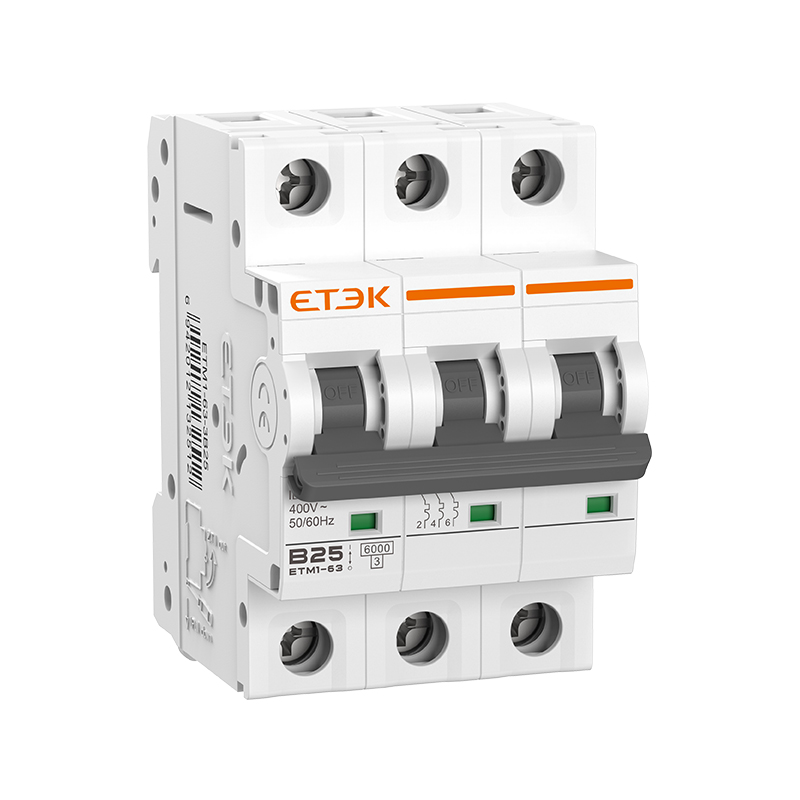

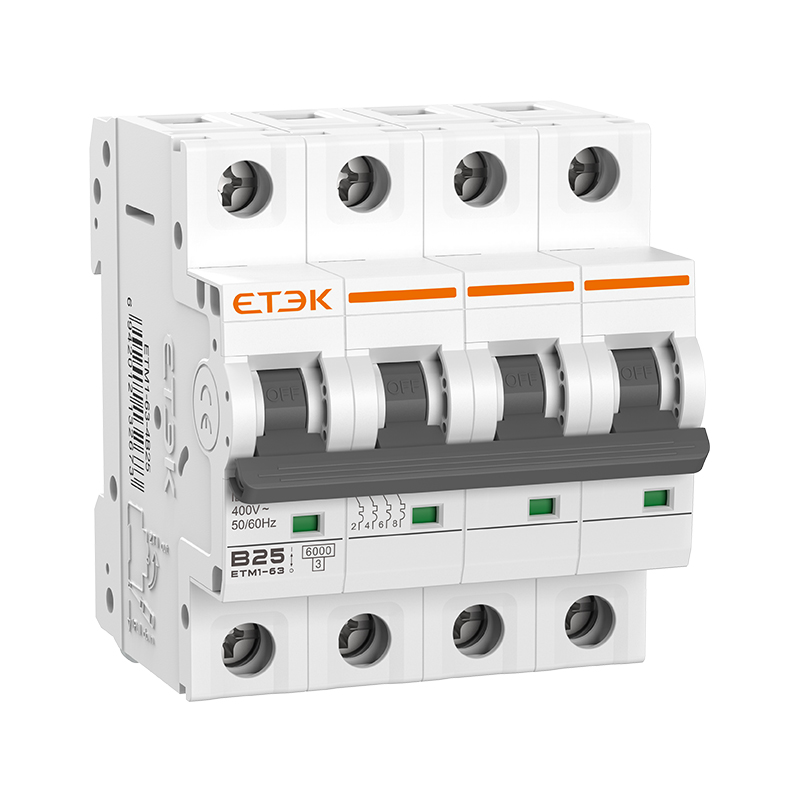

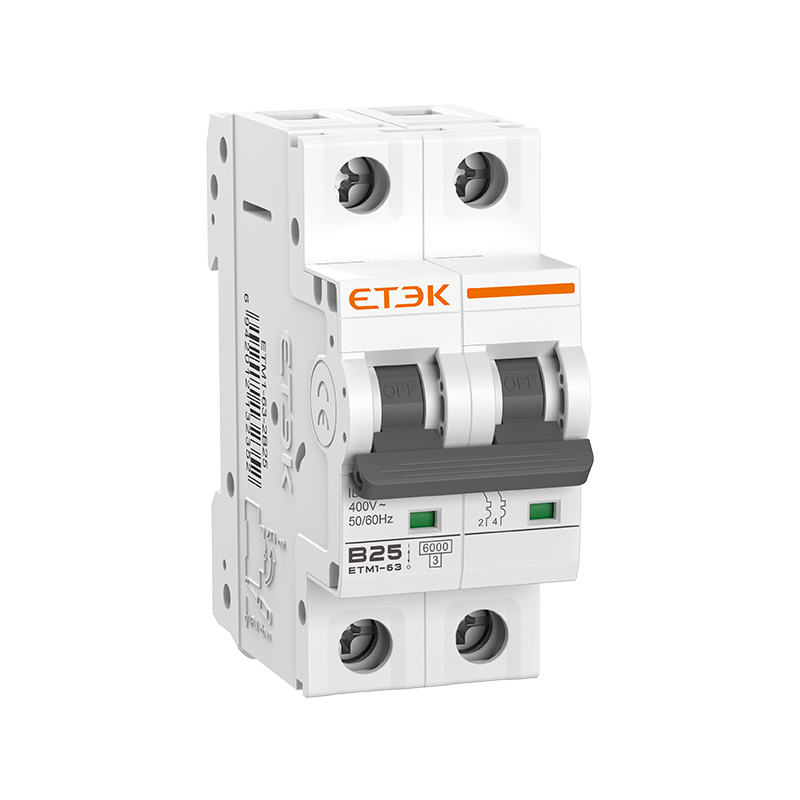

EKM1-63H AC circuit breaker is designed to provide robust overload and short-circuit protection for solar photovoltaic (PV) systems, particularly in commercial and industrial applications. With a breaking capacity of 10kA, it is ideal for handling high fault currents in larger PV installations. Its compliance with IEC60898-1&IEC60947-2 standards ensures reliable performance in demanding environments, while its B/C/D trip curves make it versatile for various load types, including lighting, general circuits, and motor-driven equipment.
|
General data |
|
|
Protection |
Overcurrent and short circuit |
|
Type of trip |
Thermo-magnetic |
|
No. of poles |
1P, 2P, 3P, 4P |
|
Rated Current |
1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
|
Rated frequency |
50/60Hz |
|
Insulation voltage (Ui) |
415V |
|
Pollution degree |
2 |
|
Data acc. to IEC/EN 60898-1 |
|
|
Rated operational voltage (Ue) |
1P:230/400VAC,240/415VAC;2P,3P,4P: 400/415VAC |
|
Rated short-circuit capacity (Icn) |
10kA |
|
Rated service short-circuit breaking capacity (Ics) |
7.5kA |
|
Energy limiting class |
3 |
|
Rated impulse withstand voltage (Uimp) (1.2/50μs) |
6kV |
|
Dielectric test voltage |
2kV (50/60Hz, 1 min.) |
|
Thermal tripping characteristics |
1.13In No tripping within an hour 1.45In Tripping within an hour |
|
Instantaneous tripping characteristics |
B: 3In-5In; C: 5In-10In; D: 10In-20In |
|
Data acc. to IEC/EN 60947-2 |
|
|
Rated operational voltage (Ue) |
1P:230/400VAC,240/415VAC; 2P,3P,4P:400/415VAC 1P: 80VDC; 2P: 125VDC |
|
Rated ultimate short circuit breaking capacity Icu (kA) |
10kA |
|
Rated service short circuit breaking capacity Ics (kA) |
7.5kA |
|
Rated impulse withstand voltage (Uimp) (1.2/50μs) |
6kV |
|
Dielectric test voltage |
2kV (50/60Hz, 1 min.) |
|
Thermal tripping characteristics |
1.05In No tripping within an hour 1.30In Tripping within an hour |
|
Instantaneous tripping characteristics |
8In-12In |
|
Mechanical data |
|
|
Electrical life |
4,000 Cycles |
|
Mechanical life |
20,000 Cycles |
|
Contact position indication |
green OFF / red ON |
|
Protection degree |
IP20 |
|
Reference temperature |
30℃ |
|
Operating ambient temperature (with daily average≤35℃) |
-25℃~ +55℃ |
|
Storage temperature |
-30℃ ~ +70℃ |
|
Installation |
|
|
Terminal connection type |
Cable/Pin-type/ Fork-type busbar |
|
Terminal block |
Screw press-connected |
|
Max. terminal size for cable |
25mm² |
|
Max. Tightening torque |
2.5Nm |
|
Mounting type |
Mounting on 35mm DIN rail |
|
Incoming method |
Bi-Directional |
