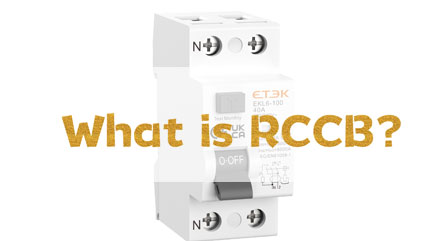

A Residual Current Circuit Breaker (RCCB) is a critical safety device in low-voltage electrical systems, designed to detect and interrupt leakage currents to prevent electric shocks and fire hazards. This article explains its operational mechanism through four core aspects: fundamental principles, component collaboration, type variations, and practical applications.
The RCCB operates based on Kirchhoff's Current Law, which states that in a healthy circuit, the total current entering a node equals the current leaving it. In single-phase systems, the current in the live wire (phase) should perfectly balance the current in the neutral wire (Iₚ = Iₙ). When insulation damage causes current to leak to ground, the phase-neutral current balance is disrupted, generating a residual current (ΔI = Iₚ - Iₙ).
This imbalance is detected by a Zero Sequence Current Transformer (ZCT), a toroidal core through which both phase and neutral wires pass. Under normal conditions, their opposing magnetic fields cancel out, inducing no voltage in the ZCT's secondary winding. During a fault, the unbalanced magnetic flux induces a voltage proportional to the residual current, triggering the protection mechanism.
|
Component Name |
Function Description |
|
Zero Sequence Current Transformer (ZCT) |
Detects phase-neutral current imbalance, converting residual current into an electromagnetic signal (secondary-side induced voltage) |
|
Signal Processing Unit |
Amplifies (electronic types) or directly processes (electromagnetic types) signals to determine trip thresholds |
|
Mechanical Trip Mechanism |
Rapidly disconnects main contacts upon receiving a trip signal, interrupting power supply within <0.1 seconds |
1. Signal Acquisition: The ZCT detects residual current → secondary winding outputs voltage.
2. Threshold Judgment: The signal processing unit compares the measured current against the preset trip threshold (e.g., 30 mA). If exceeded, a trip command is issued.
3. Power Interruption: The trip mechanism drives contact separation, locking the circuit in the off state (manual reset required).
RCCBs are categorized into two primary types based on structural principles, each tailored for specific applications:
|
Type |
Detection Method |
Actuation Principle |
Typical Scenarios |
Core Advantages |
Limitations |
|
Electromagnetic |
Pure electromagnetic induction |
No auxiliary power required; permanent magnet actuation |
Outdoor/off-grid settings |
High reliability, robust environmental adaptability |
Accuracy affected by temperature |
|
Electronic |
Electronic circuit detection |
Relies on auxiliary power; solenoid/relay actuation |
Residential/distribution systems |
High precision, adjustable trip thresholds |
Requires stable power supply |
Pole Configuration:
• Single-phase 2P: Monitors phase-neutral leakage.
• Three-phase 4P: Detects combined imbalance across all phases and neutral.
Take a household water heater with a 30 mA rated trip current:
1. Fault Initiation: Insulation damage causes 10 mA leakage (phase current 10A > neutral current 9.99A). Residual current (10 mA) remains below the trip threshold → no action.
2. Danger Escalation: Leakage increases to 35 mA (exceeding 30 mA). The ZCT's induced voltage triggers the electronic amplifier.
3. Rapid Interruption: The trip coil energizes, driving the linkage system to disconnect the 220V main contacts within 0.08 seconds.
4. State Locking: Mechanical latches maintain the open state. Manual reset is required after fault resolution.
RCCBs establish a three-tiered protection system—imbalance detection → signal processing → mechanical interruption—to safeguard against electric shocks (30 mA and below) and equipment ground faults. Proper type selection (electromagnetic/electronic) and regular testing (monthly push-button tests) ensure long-term reliability. By integrating electromagnetic principles with mechanical robustness, RCCBs serve as a cornerstone of electrical safety in both domestic and industrial environments.
